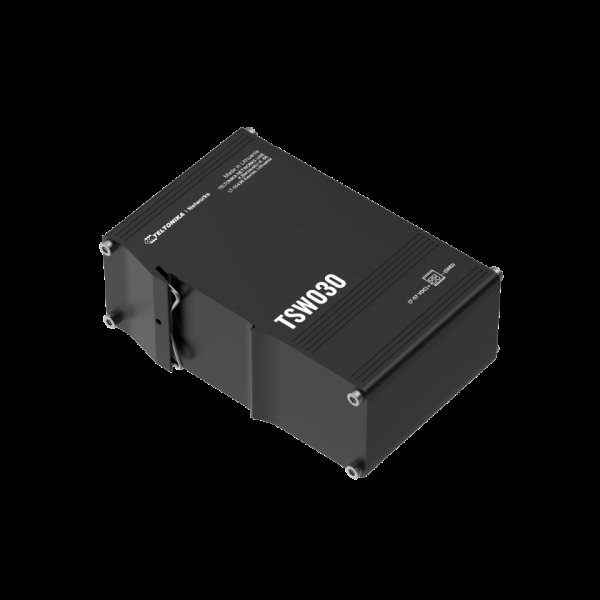

Teltonika industrial unmanaged 8-port switch TSW030

Model: TSW030

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a ma

  • Model
  • TSW030
kr‎490.66
Notify me when in stock
Product Overview
Delivery and returns

Description:







Ethernet

  • Ethernet

    8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

  • Profinet

    Profinet Class A conformance (available with optional order code)

Performance Specifications

  • Bandwidth (Non-blocking)

    20 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

Power

  • Connector

    2-pin industrial DC power socket

  • Input voltage range

    7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

  • Power consumption

    Idle: 0.5 W / Max: 1.5 W

Physical Interfaces

  • Ethernet

    8 x RJ45 ports, 10/100 Mbps

  • Status LEDs

    1 x Power LED, 16 x ETH status LEDs

  • Power

    1 x 2-pin industrial DC power socket

  • Other


    1 x Grounding screw

Physical Specification

  • Casing material

    Anodized aluminum housing and panels

  • Dimensions (W x H x D)

    113.1 x 41.2 x 74.6 mm

  • Weight

    256 g

  • Mounting options

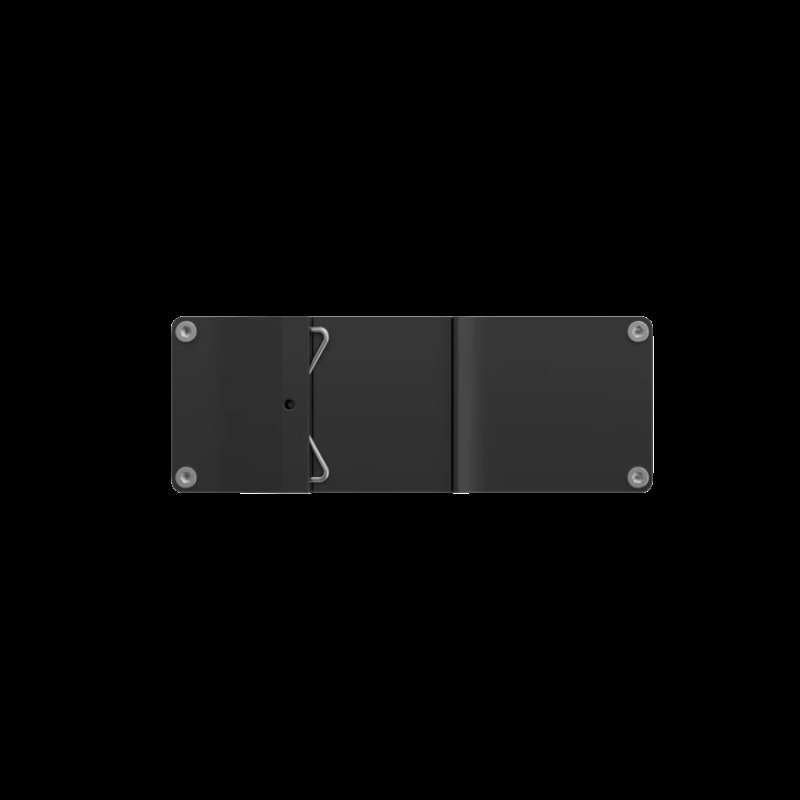

    Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    5% to 95% non-condensing

  • Ingress Protection Rating

    IP30

Regulatory & Type Approvals

  • Regulatory

    UL Safety

Safety (Ordinary Locations)

  • Standards

    UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)





Additional information

Weight 0.6 kg
