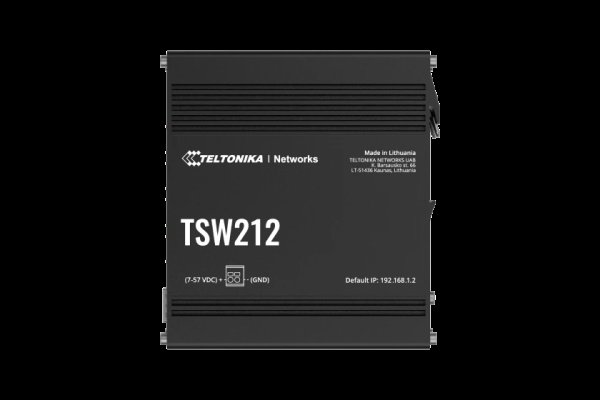

Teltonika industrial managed Gigabit Switch TSW212

Ethernet

• ETH

  Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover

• Fibre

  2 x SFP ports

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3z

INDUSTRIAL PROTOCOLS

• Profinet

  Profinet Class B conformance (available with optional order code)

POE OUT

• PoE ports

  Port 1 - 8

• PoE standards

  802.3af and 802.3at Alternative A (From batch 42)

  802.3af and 802.3at Alternative B (From batch 1-41)

• PoE Max Power per Port (at PSE)

  30 W

• Total PoE Power Budget (at PSE)

  240 W

• Maximum Ethernet cable length

  100 m

Services

• EtherNet/IP

  Yes

• SNMP V2, V3

  Yes

• LLDP

  Yes

• Network Management

  802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network

• MRP

  MRP client role, MRP manager role

• L2 features

  Loop protection, Forwarding table, VLAN, STP/RSTP

• DHCP

  DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

• Port Settings

  Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

• L3 Features

  Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

Security

• Authentication

  PAM — preshared key, Radius & TACACS+, IP & login attempts block

QoS

• QOS

  Port priority, DSCP priority, 802.1p priority, TOS

• Scheduling method

  SP/WFQ/WRR

• Bandwidth control

  Rate limiting, storm control

• Traffic Shaper

  Port-based shaping

Diagnostics

• Tools

  Cable diagnostic, ping, traceroute, nslookup

• Ping reboot

  Capability to restart PoE in a specific port

API

• Teltonika Networks Web API (beta) support

  Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics

• RAM

  128MB, DDR3

• FLASH storage

  16 MB serial flash

Firmware / Configuration

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

FIRMWARE CUSTOMISATION

• Operating system

  TSWOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

Performance Specifications

• Bandwidth (Non-blocking)

  20 Gbps

• Forwarding rate

  14.88 Mpps

• Packet buffer

  512 KB

• MAC address table size

  8K entries

• Jumbo frame support

  10000 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC

• PoE-out input voltage range

  44 – 57 VDC

• Power consumption

  Idle: < 3 W / Max: 8 W / PoE Max: 248 W

Physical Interfaces

• Ethernet

  8 x RJ45 ports, 10/100/1000 Mbps

• Fibre

  2 x SFP ports

• Status LEDs

  1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Reset

  Software reset button

• Other


  1 x Grounding screw

Physical Specification

• Casing material

  Anodized aluminum housing and panels

• Dimensions (W x H x D)

  132 x 44.2 x 122.2 mm

• Weight

  610 g

• Mounting options

  Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki`, UL Safety

EMC Emissions & Immunity

• Standards

  EN 55032:2015 + A11:2020 + A1:2020

  EN 55035:2017 + A11:2020

  EN IEC 61000-3-2: 2019 + A1:2021

  EN 61000-3-3: 2013 + A1:2019 + A2:2021

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN 61000-4-11:2020

Safety

• Standards

  CE: EN IEC 62368-1:2020 + A11:2020

  RCM: AS/NZS 62368.1:2022

  CB: IEC 62368-1:2018

Safety (Ordinary Locations)

• Standards

  UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
