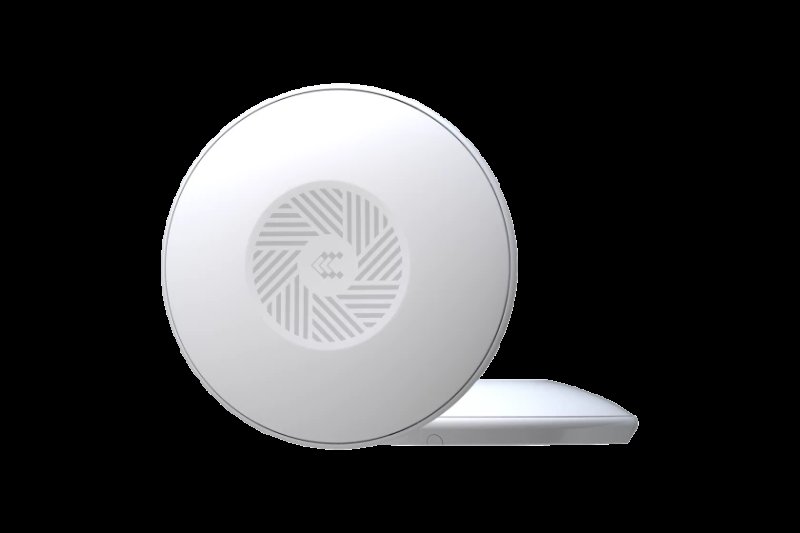

Teltonika WI-FI Access Point TAP100 (without PSU)

Wireless

• Wireless mode

  802.11b/g/n (Wi-Fi 4)

• Wi-Fi security

  WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID

  SSID stealth mode and access control based on MAC address

• Wi-Fi users

  Up to 100 simultaneous connections

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

  Allowlist, blocklist

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information

• TravelMate

  Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

• Ethernet

  1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH

• DNS over HTTPS

  DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Hotspot 2.0

  Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks

• Traffic Management

  Real-time monitoring, wireless signal charts, traffic usage history

Security

• 802.1x

  Port-based network access control client

• Authentication

  SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator

• VLAN

  Tag-based VLAN separation

DATA TO SERVER

• Protocol

  HTTP(S), MQTT, Azure MQTT, Kinesis

• Data to server

  Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

API

• Teltonika Networks Web API (beta) support

  Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

• WEB UI

  HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log

• FOTA

  Firmware update from server, automatic notification

• SSH

  SSH (v1, v2)

• Email

  Receive email message status alerts of various services

• JSON-RPC

  Management API over HTTP/HTTPS

• RMS

  Teltonika Remote Management System (RMS)

System Characteristics

• CPU

  Mediatek, 580 MHz, MIPS 24KEc

• RAM

  64 MB, DDR2

• FLASH storage

  16 MB, SPI Flash

Firmware / Configuration

• WEB UI

  Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA

  Update FW

• RMS

  Update FW/configuration for multiple devices at once

• Keep settings

  Update FW without losing current configuration

• Factory settings reset

  A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating system

  RutOS (OpenWrt based Linux OS)

• Supported languages

  Busybox shell, Lua, C, C++

• Development tools

  SDK package with build environment provided

• GPL customization

  You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

• Package Manager

  The Package Manager is a service used to install additional software on the device

Power

• Connector

  RJ45 Socket

• Input voltage range

  44.0 – 57.0 V

• PoE standards

  802.3af PoE Class 1

• Power consumption

  < 2 W Max

Physical Interfaces

• Ethernet

  1 x RJ45 ports, 10/100 Mbps

• Status LEDs

  1 x Power LED (can be turned off from web-UI)

• Antennas

  2 x Internal for 2.4 GHz Wi-Fi

• Antennas specifications

  2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional

• Reset

  Reboot/User default reset/Factory reset button

Physical Specification

• Casing material

  UV stabilized plastic

• Dimensions

  Ø 158 mm x 30 mm

• Weight

  190 g

• Mounting options

  AP mounting bracket (for ceiling mount)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  10% to 90% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, UKCA, EAC, ANRT, Kenya, SDPPI (POSTEL), CB, FCC, IC, RoHS, REACH, WEEE

EMC Emissions & Immunity

• Standards

  EN 55032:2015 + A11:2020

  EN 55035:2017 + A11:2020

  EN 61000-3-3:2013 + A1:2019 + A2:2021

  EN IEC 61000-3-2:2019 + A1:2021

  EN 301 489-1 V2.2.3

  EN 301 489-17 V3.2.4

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

• DIP

  EN IEC 61000-4-11:2020

RF

• Standards

  EN 300 328 V2.2.2

Safety

• Standards

  CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

  RCM: AS/NZS 62368.1:2022

  CB: IEC 62368-1:2018
