MikroTik wAP LR9 kit RBwAPR-2nD&R11e-LR9

Model: RBWAPR-2NDR11E-LR9
An out-of-the-box gateway solution for LoRa® technology, 902-928 MHz.
  • Model
  • RBWAPR-2NDR11E-LR9
kr‎1,750.50
99999 in stock

Description:

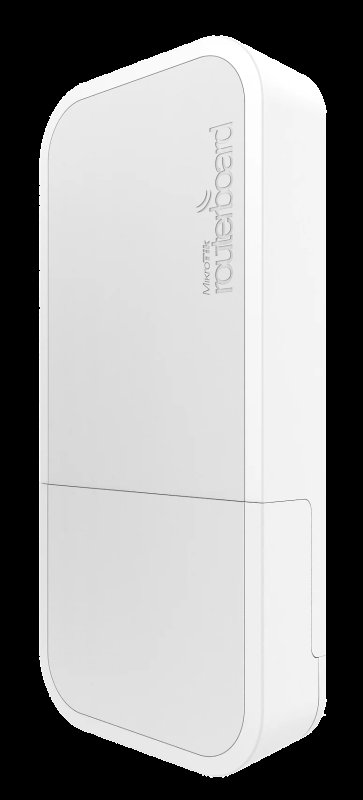

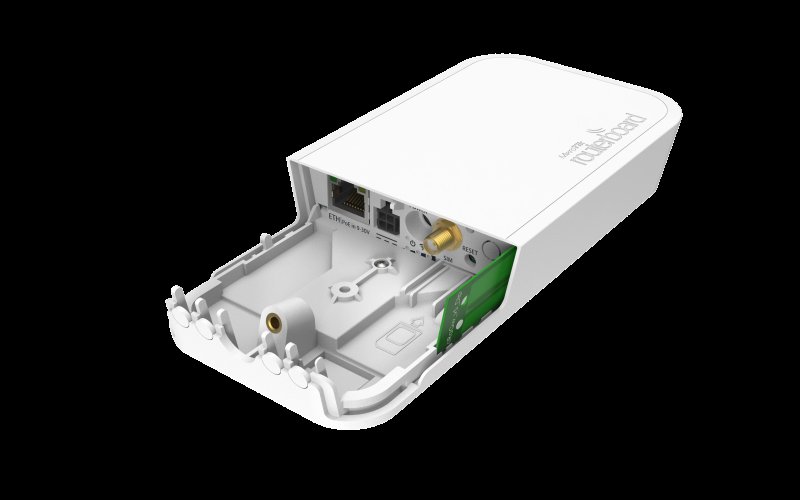

wAP LR9 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.

Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)



Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR9 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.

*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem





Specifications

Details
Product code RBwAPR-2nD&R11e-LR9
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $169.00







Powering

Details
Number of DC inputs 3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V







Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4







Ethernet

Details
10/100 Ethernet ports 1







Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1







Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes







Certification & Approvals

Details
Certification FCC, IC, EAC
IP IP54







Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71









Additional information

Weight 0.591 kg
Dimensions 28 × 12 × 8.5 cm
Enclosure

Desktop
