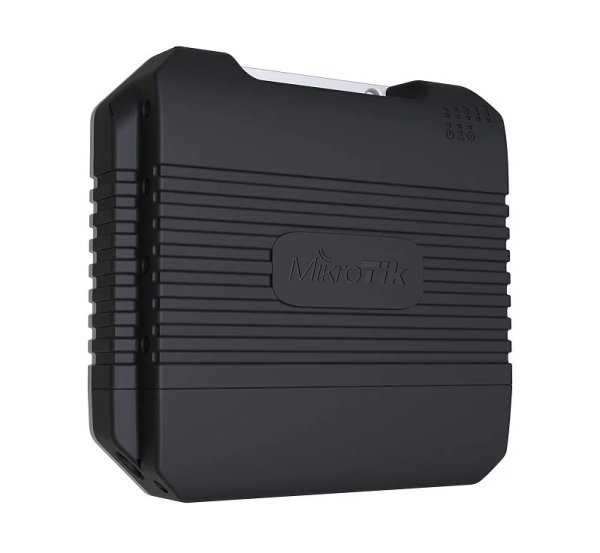

MikroTik LtAP

Model: RBLTAP-2HND
A heavy-duty 2.4GHz access point with two miniPCI-e slots, three SIM slots and GNSS support (GPS, GLONASS, BeiDou, Galileo)
  • Model
  • RBLTAP-2HND
kr‎1,914.61
99999 in stock

Description:

The new LtAP is a compact weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has high power 2.4 GHz 802.11b/g/n wireless and Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

The unit comes with a two miniPCIe slots, offering many expansion options. For example, you can install LTE modem of your choice for LTE backup and 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

The new LtAP is more than an access point – it is what you need it to be wherever you need it to be.



Specifications

Details
Product code RBLtAP-2HnD
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $199.00







Powering

Details
Number of DC inputs 3 (PoE-IN, DC jack, Automotive)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-30 V







Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9382
Wireless 2.4 GHz generation Wi-Fi 4







Ethernet

Details
10/100/1000 Ethernet ports 1







Peripherals

Details
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1







Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
GNSS standards GPS







Certification & Approvals

Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP54







Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73







Additional information

Weight 1.3 kg
Dimensions 200 × 200 × 60 cm
Enclosure

Industrial

Ethernet ports

2
