Do you dream of escaping the hustle and bustle of the busy city life and moving to the suburbs? Perhaps you’ve already made the move but are frustrated by the slow internet speeds? Fear not, because Chateau is here to solve all your connectivity problems. Going back to the city to finish some business? Once again – Chateau is the perfect companion for ultra-fast premium connectivity.

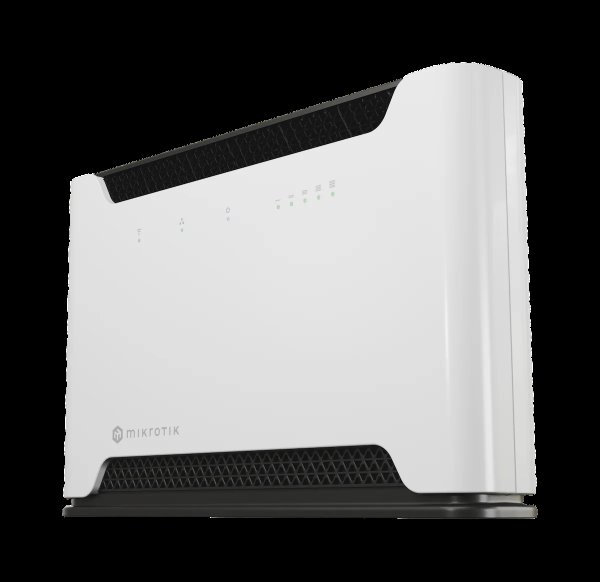

Chateau 5G R16 is the 2023 upgrade of our bestselling 5G Chateau home and office router – designed to make 5G more affordable than ever. The new modem brings the price down while adding features like NR CA and 3GPP Release standard with extra ENDC combination support. In other words, much better connectivity across a wide range of different mobile operator towers! It can even simultaneously use the 5G and 4G bands to maximize the throughput! It also supports 4x4 MIMO for the lower frequency range, including band 8, 20, and 28 – for even better signal in the countryside. Wherever life takes you – Chateau can make it better!
There are 5x Gigabit Ethernet ports – enough to connect most household devices: PCs, TVs, game consoles, and so on.
More than just a router: try containers for home automation, ad blocking, simple web hosting, private DNS, network storage, IoT, and so much more.
Latest version of our versatile RouterOS, a powerful quad-core ARM CPU and a USB port for extra storage – that’s all you need to step inside the exciting world of Linux container apps! Here are some neat container use-cases to explore with your brand new Chateau:
Block all unwanted ads with PiHole hosted on your Chateau 5G R16!
Host your web blog or a simple website on your router – without any additional hardware.
Chateau 5G R16 can host the HomeAssistant app, which allows monitoring your CCTV cameras, temperature sensors, and other devices to create the smart home ecosystem of your dreams!
You can even automate your home. For instance, wouldn’t it be nice if the air conditioning turned on automatically when it gets too hot? With Chateau’s container support that’s an easy ride!
We can offer special project pricing and additional discounts for mobile operators to bring the costs down
Specifications
| Details |
| Product code |
D53G-5HacD2HnD-TC&RG520F-EU |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4019 |
| CPU core count |
4 |
| CPU nominal frequency |
448-896 (auto) MHz |
| Switch chip model |
IPQ-4019 |
| Dimensions |
240 x 156 x 44 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
| Suggested price |
$485.00 |
Powering
| Details |
| Number of DC inputs |
1 (DC jack) |
| DC jack input Voltage |
12-28 V |
| Max power consumption |
25 W |
| Max power consumption without attachments |
20 W |
| Cooling type |
Passive |
Mobile
| Details |
| 3G Category |
R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands |
5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
| LTE Category |
20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
| LTE FDD bands |
5 (850MHz) / 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 32 (1500 MHz) |
| LTE TDD bands |
40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 38 (2600MHz) |
| 5G NSA FDD bands |
5 (850 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz) |
| 5G NSA TDD bands |
75 (1500 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 38 (2600 MHz) / 78 (3500 MHz) / 76 (1500 MHz) |
| 5G SA FDD bands |
5 (850 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz) |
| 5G SA TDD bands |
76 (1500 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 38 (2600 MHz) / 78 (3500 MHz) / 75 (1500 MHz) |
| TAC |
86945405 |
Wireless specifications
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11a/b/g/n |
| Antenna gain dBi for 2.4 GHz |
3 |
| Wireless 2.4 GHz chip model |
IPQ-4019 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
5.5 |
| Wireless 5 GHz chip model |
IPQ-4019 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Micro SIM) |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
| Number of M.2 slots |
1 |
Other
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
Wireless specifications
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
26 |
-96 |
| 54MBit/s |
22 |
-80 |
| MCS0 |
26 |
-96 |
| MCS7 |
21 |
-75 |
| MCS9 |
19 |
-70 |
Additional information
| Weight |
1.1 kg |
| Dimensions |
33 × 6 × 19 cm |
| Enclosure |
Desktop
|
| Ethernet ports |
5
|
