MikroTik LHG LTE18 kit LHGGM&EG18-EA

Model: LHGGMEG18-EA
Great distances, even greater speed – with the power of the ultra fast LTE Category 18 modem. Speeds up to one Gbps! Last-mile-internet solution for the most remote areas.
  • Model
  • LHGGMEG18-EA
kr‎2,721.49
99999 in stock
Product Overview
Delivery and returns

Description:

Like the previous LHG LTE models, this is a last mile-internet solution for situations when even your phone might not have any signal. The new LHG comes with a cutting-edge Category 18 LTE modem – for the fastest mobile internet no matter where you are. This kit supports speeds up to one Gbps! Due to its large high-gain 17 dBi antenna, LHG LTE18 kit can connect to cell towers in extreme rural locations where nothing else is available.

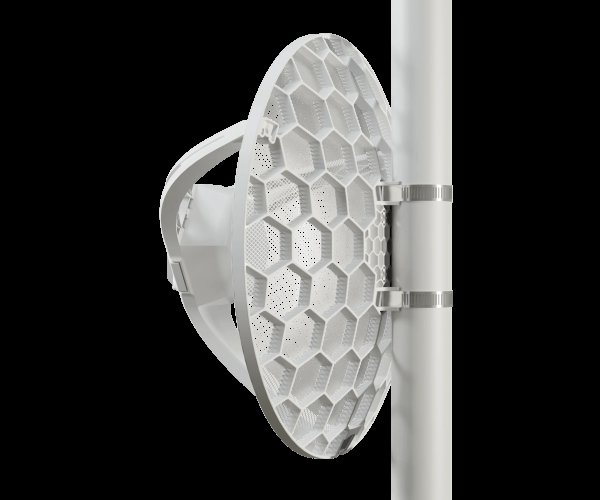

There is a massive heat sink, so you don’t have to worry about overheating. The grid antenna design can withstand harsh, windy weather. And it can be mounted in different ways, including poles and masts.

The LHG LTE18 kit features a 1.2 Gbps CAT18 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. If you’re competing for traffic in a place with poor connectivity, the new LHG will give you the upper hand. We have seen internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions

There’s a mighty high-gain antenna inside that supports a variety of LTE bands. It goes as high as 2.7 GHz. And it offers extensive low frequency coverage as well. Keep in mind that the device only supports 2x2 DL MIMO as the LHG has only 2 antenna ports. You’ll be using the Gigabit Ethernet port with PoE-in for powering from an ethernet switch. But we’ve included an injector as well. There’s a standard MicroSIM slot for LTE connectivity. And at the heart of this useful gadget, we have a powerful 64 bit dual-core ARM CPU.

So don’t wait for cable or satellite network providers to reach you – choose LHG LTE18 kit and always stay connected!









Specifications

Details
Product code LHGGM&EG18-EA
Architecture ARM 64bit
CPU 88F3720
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 3
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $279.00







Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V







Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL 2x2
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86981604







Ethernet

Details
10/100/1000 Ethernet ports 1







Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of M.2 slots 1







Other

Details
Mode button Yes







Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 54







Additional information

Weight 4 kg
Dimensions 46.5 × 16.5 × 44.5 cm
Enclosure

Industrial
Ethernet ports

1
