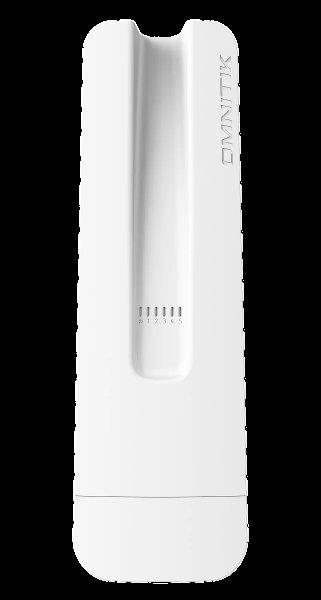

Mikrotik OmniTIK 5 PoE ac

Model: RBOMNITIKPG-5HACD
7.5dBi Integrated AP, 5GHz Dual chain with 802.11ac support, 5x Gigabit Ethernet ports with PoE-out.
  • Model
  • RBOMNITIKPG-5HACD
kr‎1,367.59
99999 in stock

Description:

We are glad to introduce a significant upgrade to our popular OmniTIK 5GHz access points!

OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.



- OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)



Specifications

Details
Product code RBOmniTikPG-5HacD
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Switch chip model QCA8337
Dimensions 416 x 129 x 58 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $139.00







Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 66 W
Max power consumption without attachments 18 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V







PoE-out

Details
PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2 A







Wireless specifications

Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 7.5
Wireless 5 GHz chip model QCA9892
Wireless 5 GHz generation Wi-Fi 5







Ethernet

Details
10/100/1000 Ethernet ports 5







Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1







Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes







Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54







Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72







Additional information

Weight 1.4 kg
Dimensions 21 × 43 × 6 cm
