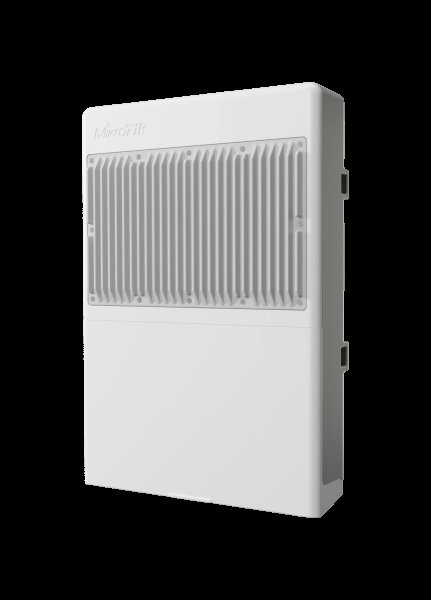

MikroTik netPower 16P

Model: CRS318-16P-2S+OUT
An outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+. Power all your access points anywhere!
  • Model
  • CRS318-16P-2S+OUT
kr‎2,789.86
99999 in stock

Description:

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

Device itself does not have an onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W





Specifications

Details
Product code CRS318-16P-2S+OUT
Architecture ARM 32bit
CPU 98DX226S
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
Dimensions 303 x 212 x 78 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $279.00







Powering

Details
Number of DC inputs 2 (DC jack)
DC jack input Voltage 18-30 V / 48-57 V
Max power consumption 316 W
Max power consumption without attachments 16 W
Cooling type Passive







PoE-out

Details
PoE-out ports Ether1-Ether16
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1.1 A
Max out per port output (input 30-57 V) 0.6 A
Max total out (A) 2.8A (18V-30V) & 1.4A (48V-57V) x2







Ethernet

Details
10/100/1000 Ethernet ports 16
Number of 1G Ethernet ports with PoE-out 16







Fiber

Details
SFP+ ports 2







Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes







Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54







Additional information

Weight 2.78 kg
Dimensions 40 × 9.7 × 24.7 cm
Enclosure

Industrial
