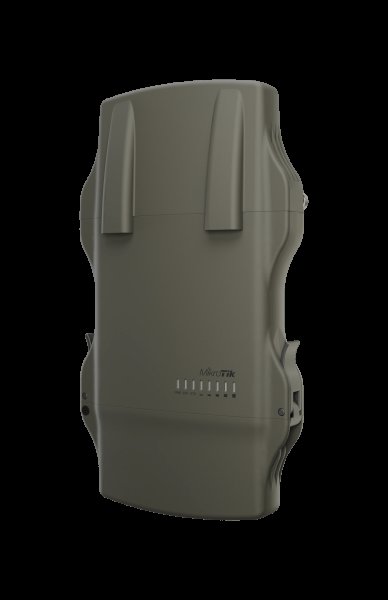

Mikrotik NetMetal ac²

Model: RBD23UGS-5HPACD2HND-NM
Our toughest long-range AP, now with dual-band support.
  • Model
  • RBD23UGS-5HPACD2HND-NM
kr‎1,900.94
99999 in stock

Description:

More power and advanced features, with the same design philosophy as its predecessors – the new NetMetal ac² AP is sturdy, reliable, easy to use and extremely capable. This is the best way to add IPsec hardware acceleration to your backhaul link! We have added an out-of-the-box 2.4/5 GHz dual-concurrent (2.4GHz and 5GHz can be used at the same time) band support – no need for additional tinkering!

NetMetal ac² can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM. There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac² can be a very adaptable addition for all kinds of setups.

Two RP-SMA connectors allow adding an antenna of your choice. If necessary, you can adapt the NetMetal ac² for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit (not included; available for ordering seperately)

The enclosure has an IP rating of IP66 with protection against splashing from any angle, but it can still be opened and closed with one hand. Very handy in rough environments!







Specifications

Details
Product code RBD23UGS-5HPacD2HnD-NM
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 143 x 247 x 48 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $169.00







Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 28 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V







Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5







Ethernet

Details
10/100/1000 Ethernet ports 1







Fiber

Details
SFP ports 1







Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1







Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes







Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP66







Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -100
11MBit/s 30 -94
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -96
MCS7 26 -75
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -80
MCS0 30 -96
MCS7 26 -75
MCS9 23 -72







Additional information

Weight 1.27 kg
Dimensions 40 × 15 × 7 cm
Enclosure

Industrial
