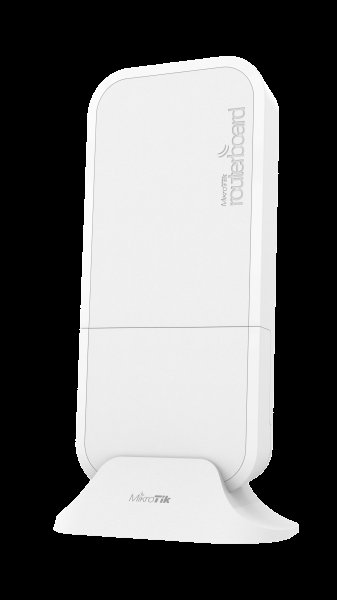

MikroTik wAP ac LTE6 kit RBwAPGR-5HacD2HnD&R11e-LTE6

Model: RBWAPGR-5HACD2HNDR11E-LTE6
Powerful and versatile dual-band wireless access point with CAT6 LTE support
  • Model
  • RBWAPGR-5HACD2HNDR11E-LTE6
kr‎2,095.30
99999 in stock

Description:

A small package with huge ambition – the wAP ac LTE6 kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!

CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.







Specifications

Details
Product code RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 488-896 (auto) MHz
Switch chip model IPQ-4018
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 60°C
IPsec hardware acceleration Yes
Suggested price $209.00







Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V







Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC 35666210







Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5







Ethernet

Details
10/100/1000 Ethernet ports 2







Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1







Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes







Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54







Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -100
11MBit/s 22 -94
6MBit/s 23 -95
54MBit/s 19 -78
MCS0 23 -95
MCS7 18 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68









Additional information

Weight 0.785 kg
Dimensions 6 × 15 × 26 cm
Enclosure

Desktop

Ethernet ports

5
