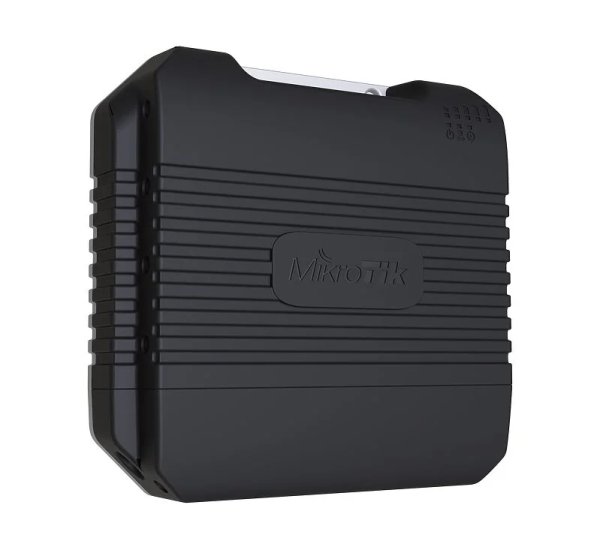

Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.
The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.
Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C° to +70 C°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.
Specifications
| Details |
| Product code |
RBLtAP-2HnD&R11e-LTE |
| Architecture |
MMIPS |
| CPU |
MT7621A |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threads count |
4 |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 50°C |
| IPsec hardware acceleration |
Yes |
| Suggested price |
$249.00 |
Powering
| Details |
| Number of DC inputs |
3 (Automotive, PoE-IN, DC jack) |
| DC jack input Voltage |
12-30 V |
| Automotive input Voltage |
12-27 V |
| Max power consumption |
24 W |
| Max power consumption without attachments |
12 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-30 V |
Mobile
| Details |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) |
| TAC |
35565409 |
Wireless specifications
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
AR9382 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
3 Modem (Mini SIM) |
| MiniPCI-e slots |
2 |
| Serial console port |
RS232 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| GNSS standards |
GPS |
Certification & Approvals
| Details |
| Certification |
CE, FCC, IC, E-MARK, EAC, ROHS |
| IP |
IP54 |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
25 |
-100 |
| 11MBit/s |
25 |
-94 |
| 6MBit/s |
26 |
-96 |
| 54MBit/s |
23 |
-78 |
| MCS0 |
26 |
-96 |
| MCS7 |
22 |
-73 |
Additional information
| Weight |
1.3 kg |
| Dimensions |
200 × 200 × 60 cm |
| Enclosure |
Industrial
|
| Ethernet ports |
2
|
