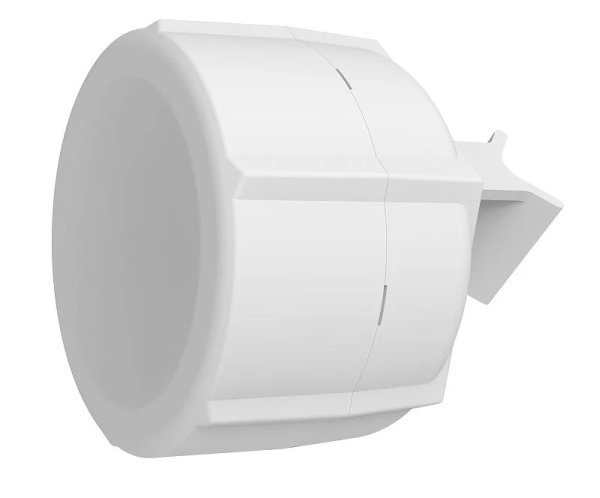

MikroTik SXT LTE6 kit RBSXTR&R11e-LTE6 EOL

Model: RBSXTRR11E-LTE6
End of life product. Replaced by new version.
  • Model
  • RBSXTRR11E-LTE6
kr‎1,807.71
99999 in stock

Description:

SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.

The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.







Specifications

Details
Product code RBSXTR&R11e-LTE6
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
Suggested price $169.00







Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 21 W
Max power consumption without attachments 7 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V







PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA







Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC 35666210







Ethernet

Details
10/100 Ethernet ports 2







Peripherals

Details
Number of SIM slots 2 Modem (Micro SIM)
MiniPCI-e slots 1







Other

Details
Mode button Yes







Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54









Additional information

Weight 1 kg
Dimensions 13 × 16.5 × 23.5 cm
Enclosure

Industrial

Ethernet ports

2
