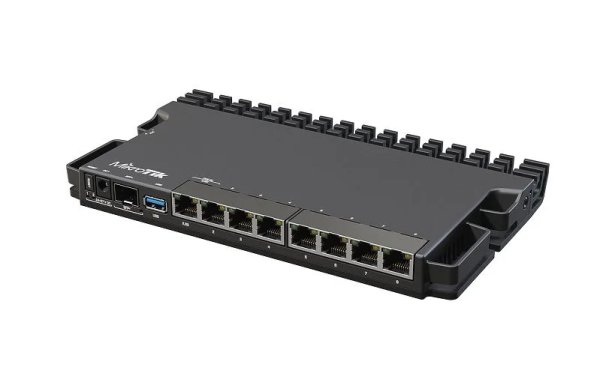

MikroTik RB5009UG+S+IN

Model: RB5009UG+S+IN

The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor.

  • Model
  • RB5009UG+S+IN
kr‎2,126.75
99999 in stock
Product Overview
Delivery and returns

Description:

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal (5.08mm 1x2pin) on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.











Specifications

Details
Product code RB5009UG+S+IN
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes
Suggested price $219.00







Powering

Details
Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 25 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V







Ethernet

Details
10/100/1000 Ethernet ports 7
Number of 2.5G Ethernet ports 1







Fiber

Details
SFP+ ports 1







Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5







Other

Details
CPU temperature monitor Yes







Certification & Approvals

Details
Certification CE, EAC, ROHS





Additional information

Weight 0.78 kg
Dimensions 31 × 13 × 5 cm
Ethernet ports

9
Enclosure

Rackmount
