Overview

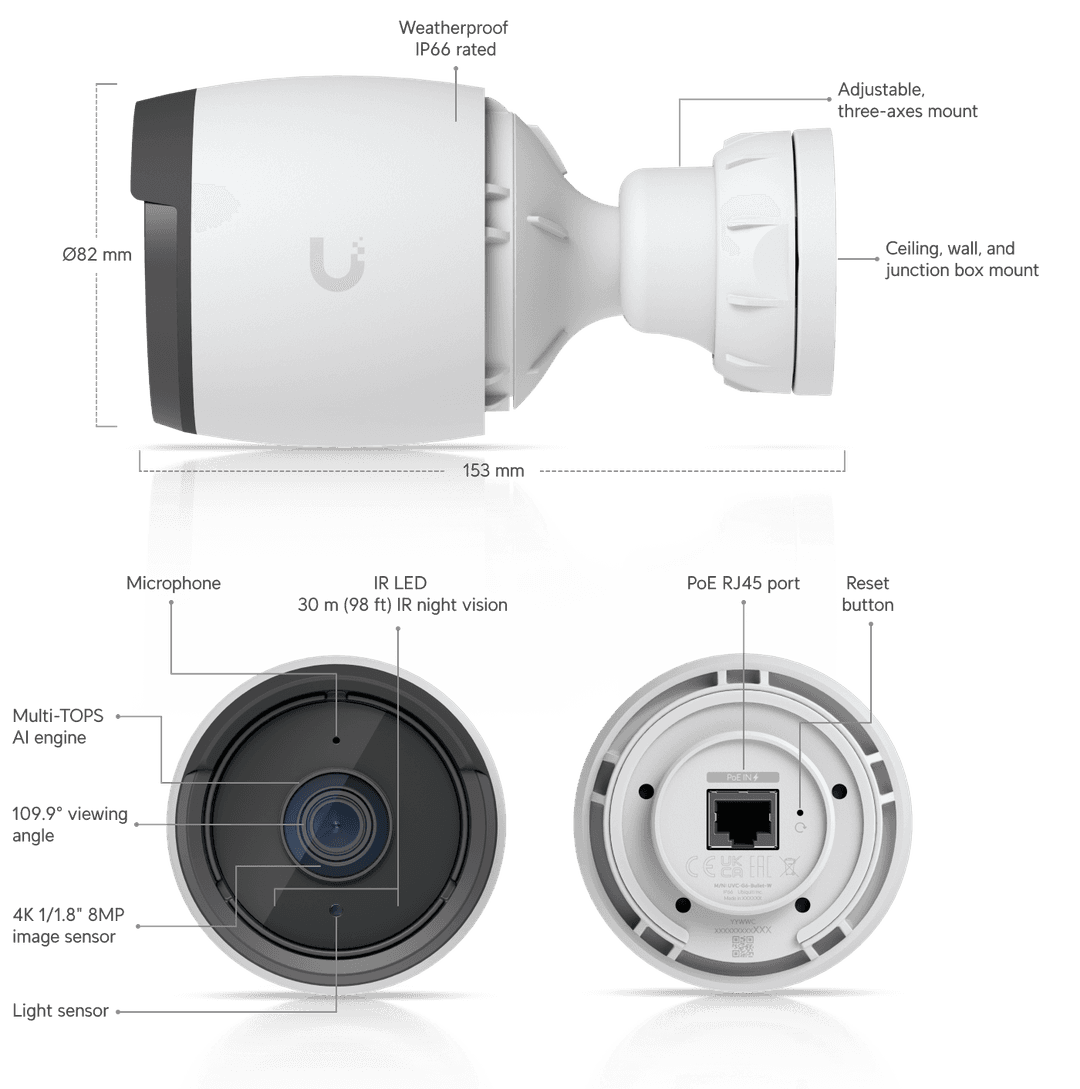

Dimensions
Without mount: Ø82 x 88.8 mm (Ø3.2 x 3.5") With mount: Ø82 x 153 mm (Ø3.2 x 6")
IR Night Vision
30 m (98 ft)
Face Recognition
✓
License Plate Recognition
✓
Smart Detections (People, Vehicles, Animals)
✓
Resolution
4K
Field of View
H: 109.9°, V: 56.7°, D: 134.1°
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, ceiling, pole mount (Included) Junction box, angled base (Optional)
Performance
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate
30 FPS
Resolution
8MP 3840 x 2160 (16:9)
Optics
Sensor
1/1.8” 8MP
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
9.9W
Supported Voltage Range
37–57V DC
Power Method
PoE
Processor
Quad-core Arm® Cortex®-A53 based chip
Pole Mount Diameter
1.5–2" (38–50 mm)
Weight
Without mount: 587 g (1.3 lb) With mount: 737 g (1.6 lb)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Wall mount: aluminum alloy, polycarbonate Pole mount: aluminum alloy
Button
(1) Factory-reset
Ambient Operating Temperature
-20 to 50° C (-4 to 122° F)
Ambient Operating Humidity
0 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
Additional information
| Weight |
0.5 kg |
| Dimensions |
15 × 15 × 10 cm |
