Overview
Dimensions

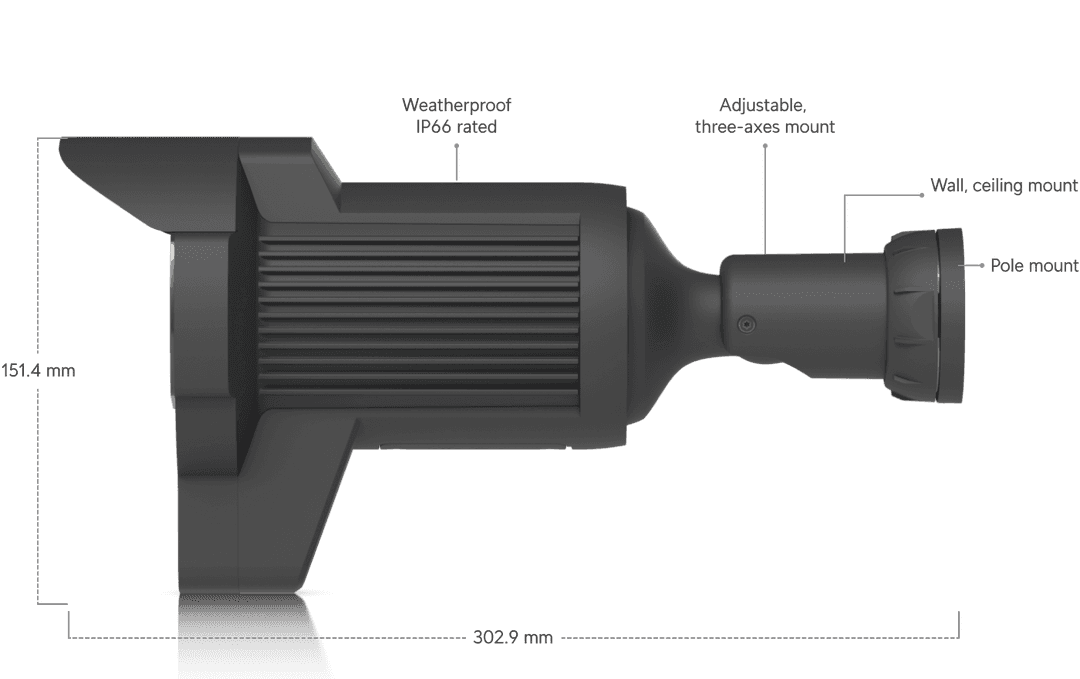

130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9")
IR Night Vision
15 m (50 ft)
Optical Zoom
3x
License Plate Recognition
✓
Smart Detections (People, Vehicles, Animals)
✓
Resolution
4K
Field of View
Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40°
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK04
Mounting
Wall, ceiling, pole mount (Included) Junction box, angled base (Optional)
Performance
Networking Interface
GbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
8MP 3840 x 2160 (16:9)
Optics
Sensor
1/1.8" 8MP
Lens
F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3
IR Capture Distance
15 m (50 ft)
LPR Night Mode
LPR optimization filter
Hardware
Max. Power Consumption
25.5W
Supported Voltage Range
42.5–57V DC
Power Method
PoE+
Processor
Quad-core Arm® Cortex®-A53 based chip
Pole Mount Diameter
1.5–2" (38–50 mm)
Weight
1.5 kg (3.3 lb)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Aluminum Alloy
Button
(1) Factory-reset
Ambient Operating Temperature
-20 to 50° C (-4 to 122° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
Cable
Cable Connector Type
RJ45
Cable Diameter
4.5 mm (0.2")
Cable Length
30 cm (1 ft)
Jacket Material
Thermoplastic elastomer
Jacket Enclosure Dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber
Expansion Slot
Micro SD memory card
Additional information
| Weight |
1.5 kg |
| Dimensions |
35 × 17 × 15 cm |
