Advanced Wi-Fi 7 Access Point
The UniFi U7 Lite is Ubiquiti’s new addition to its access point lineup, bringing the cutting-edge Wi-Fi 7 (802.11be) technology to both home and small business environments. This device offers significant advancements over its predecessors, such as the U6-Lite, by delivering enhanced speed, reduced latency, and improved network efficiency. With a sleek, compact design measuring Ø171.5 x 33 mm, the U7 Lite seamlessly integrates into various settings, providing robust wireless coverage across areas up to 115 m². Its support for Wi-Fi 7 ensures users experience faster data rates and more reliable connections, catering to the increasing demands of modern wireless applications. The device is powered via PoE, adhering to the 802.3af standard, which simplifies deployment by reducing the need for additional power outlets. Consuming only 13W at maximum, the U7 Lite delivers energy efficiency without sacrificing performance, making it a perfect upgrade for modern Wi-Fi networks.
Exceptional Performance
Equipped with dual-band capabilities, the U7 Lite operates on both 2.4 GHz and 5 GHz frequencies, utilizing 2×2 (DL/UL MU-MIMO) spatial streams for efficient data transmission. The 5 GHz band supports channel widths up to 240 MHz, achieving maximum data rates of 4.3 Gbps, while the 2.4 GHz band offers speeds up to 688 Mbps with 40 MHz bandwidth. This access point is designed to handle over 200 concurrent clients, making it suitable for environments with high device density. The inclusion of a 2.5 GbE RJ45 uplink port ensures high-speed wired connectivity, complementing the advanced wireless features. Constructed with UV-stabilized polycarbonate, the U7 Lite is built to withstand various environmental conditions, operating efficiently within temperatures ranging from -30°C to 40°C. Its compact form factor and versatile mounting options (ceiling or wall) allow for flexible installation in diverse settings.
Advanced Features
The U7 Lite incorporates a suite of advanced networking features to enhance user experience and network performance. It supports wireless meshing, band steering, and technologies like 802.11v BSS Transition Management, 802.11r Fast Roaming, and 802.11k Radio Resource Management, ensuring seamless connectivity and optimal resource utilization. For network security and customization, features such as captive hotspot portals, voucher and payment-based authentication, and guest network isolation are available. These capabilities are easily managed through the UniFi Network Application, providing administrators with intuitive control over network settings and performance metrics.
Overview
Dimensions

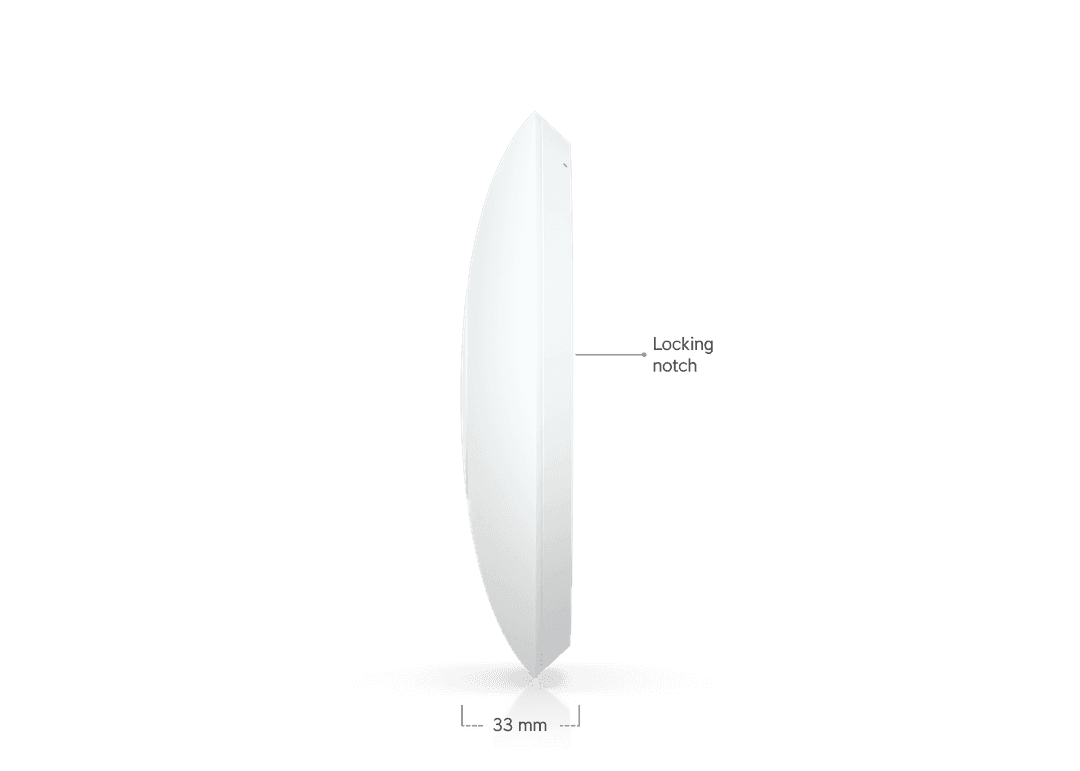

Ø171.5 x 33 mm (Ø6.8 x 1.3")
WiFi Standard
WIFi 7
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE
Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
13W
Supported Voltage Range
42.5—57V DC
Networking Interface

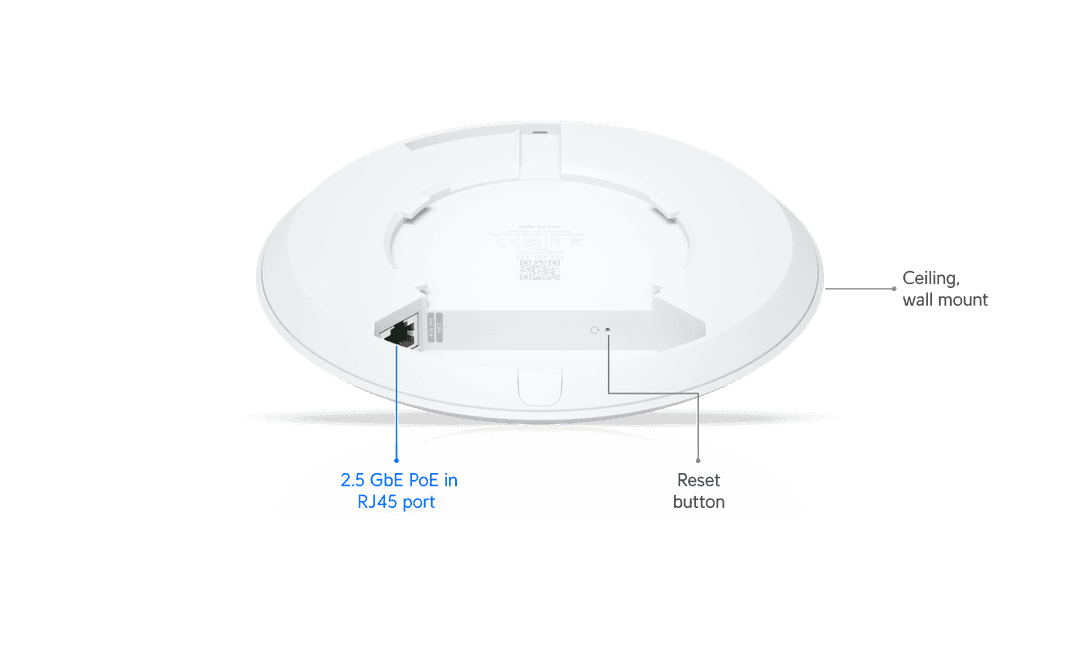

(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
✓
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
UniFi OS
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
