Features:
- (48) 25G SFP28 and (6) 100G QSFP28 ports

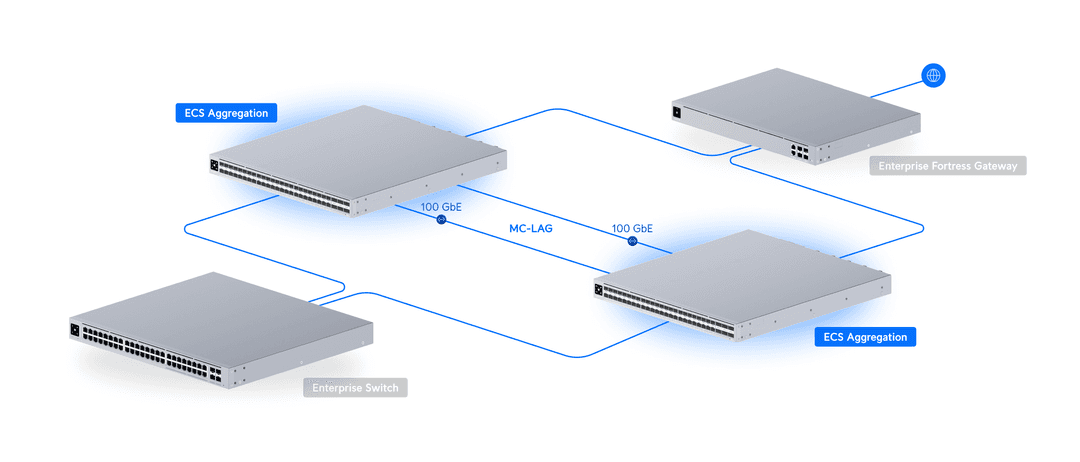

- Multi-Chassis Link Aggregation (MC-LAG) support*
- Layer 3 automatic failover (VRRP) support**
- BGP Dynamic Routing***
- (2) included hot-swappable power modules, with 1+1 redundancy****
- (5) included hot-swappable fan modules, with 4+1 redundancy
*Must be paired with another Enterprise Campus Aggregation.
**Scheduled for the next UniFi Network Application release.
***OSPF support is scheduled for an upcoming UniFi Network Application release.
****The second module is not pre-installed and ships in separate packaging.
Overview
Dimensions

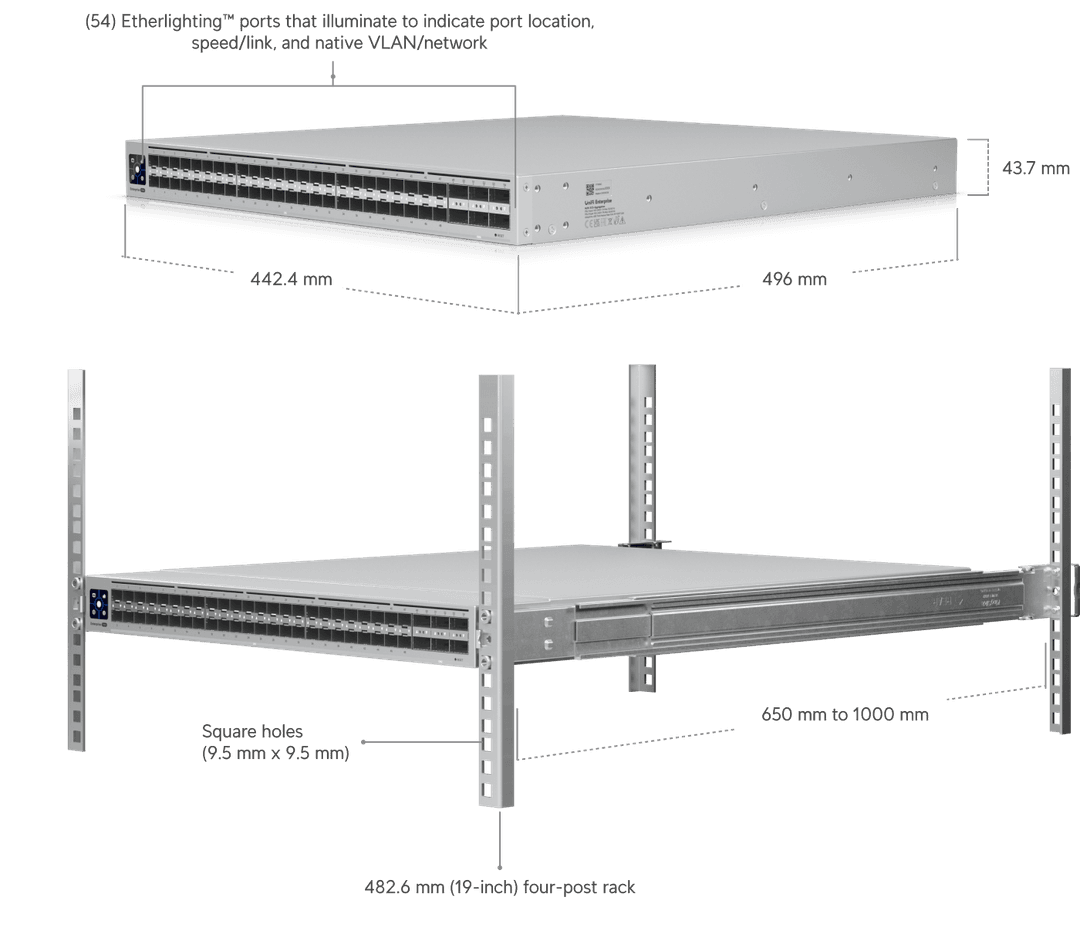

442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
Port Layout
25G SFP28
48
100G QSFP28
6
Redundancy
Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack mount (1U, Full-Depth)
Etherlighting™
✓
Performance
Switching Capacity
3.6 Tbps
Total Non-Blocking Throughput
1.8 Tbps
Forwarding Rate
2.4 Bpps
Supported VLANs
1,000
MAC Address Table Size
256,000
L3 Table Size
ARP Entries
512,000
IPv4 Routes
512,000
Packet Buffer Size
24 MB
Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
Layer 2 Features
LACP Port Aggregation
✓
MC-LAG
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Hardware
Max. Power Consumption
340W
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
1160.08 BTU/hr
Weight
Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10kg (22.04 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
ESD/EMP Protection
Air: ± 12kV, contact: ± 8kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
Etherlighting™
SFP+
✓
SFP28
✓
QSFP28
✓
Certifications
CE, FCC, IC
NDAA Compliant
✓
Software
Application Requirements
UniFi Network
Version 8.5.6 and later
