Features:
- (32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable)
- (4) 25G SFP28 ports
- (2) included hot-swappable power modules for redundancy
- (4) included hot-swappable fan modules with one backup
Note. Recommend being paired with Enterprise Campus Aggregation.
Overview

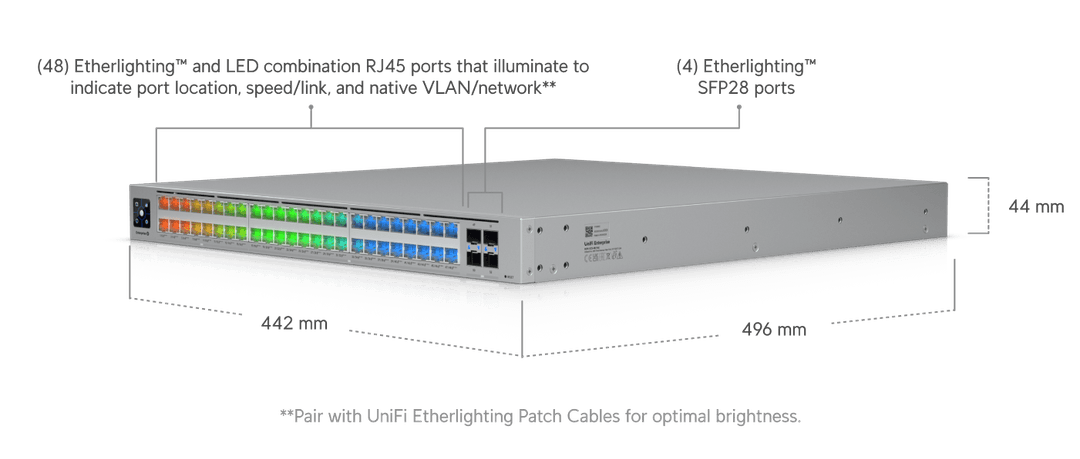

Dimensions
442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
Port Layout
2.5 GbE RJ45
16 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45
32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28
4 (25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W
Redundancy
(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack mount (1U, Full-Depth)
Etherlighting™
✓
Performance
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Hardware
PoE Ports
PoE+++
48
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
250W (Excluding PoE Output) 2,400W (Including PoE Output)
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 1,200W power modules
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Fan Method
(4) hot-swappable fan modules
ESD/EMP Protection
Air: ± 30kV, contact: ± 19kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP28
✓
LEDs
Ethernet
✓
System
✓
Certifications
CE, FCC, IC
NDAA Compliant
✓
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
