Features:
- WiFi 7 with 6 GHz support
- 12 spatial streams

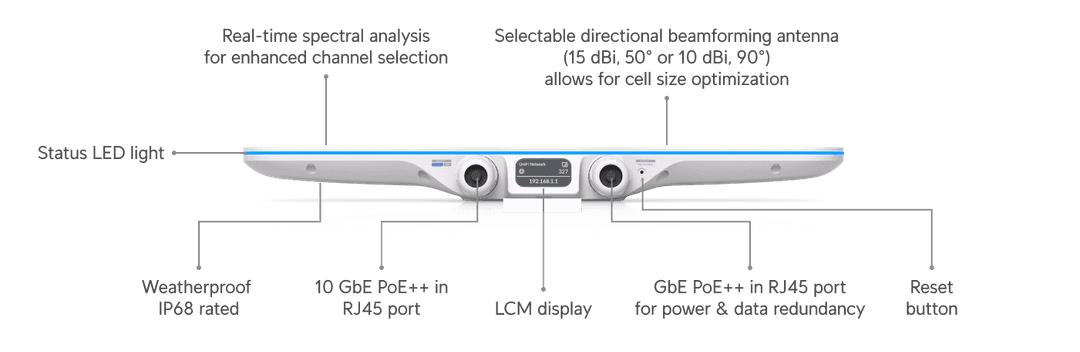

- Real-time spectral analysis for enhanced channel selection
- High selectivity PRISM™ RF filtering technology
- Dedicated spectral analyzer radio
- Selectable directional beamforming antenna (15 dBi, 50° or 11 dBi, 90°) allows for cell size optimization
- 465+ m² (5,000+ ft²) open space coverage
- 1,500+ connected devices
- (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
- Versatile wall and pole mounting
- Powered using PoE++
Overview
Dimensions
Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")
WiFi Standard
WiFi 7
Spatial Streams
12
Coverage Area
465 m² (5,000 ft²)
Max. Client Count
1500+
Uplink
10 GbE 1 GbE
Mounting
Wall, Pole (Mounts Included), VESA (Optional)
Weatherproofing
IP68
Power Method
PoE++
Performance
MIMO
6 GHz
Low / High band: 4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
Low / High band: 11.5 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
Antenna Gain
6 GHz
Small cell: 15 dBi Large cell: 11 dBi
5 GHz
Small cell: 15 dBi Large cell: 11 dBi
Max. TX Power
6 GHz
Low / High band: 30 dBm (36 dBm EIRP)
5 GHz
30 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Zero-Wait DFS
✓
Advanced Radio Management
✓
Real-Time Spectral Analysis
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
51W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port (1) GbE RJ45 port
PRISM™ RF Filtering
✓
Weight
Device: 3.3 kg (7.3 lb) With mount: 4.3 kg (9.5 lb)
Wind Loading
164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter
1~3" (25~76 mm)
Antennas
(1) Internal with directional patterns
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Aluminum alloy
LEDs
System
R/G/B
Channel Bandwidth
VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications
FCC, IC
NDAA Compliant
✓
Operating Frequency
US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 5150 - 5725 MHz 5925 - 7125 MHz
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
UniFi OS
iOS™ version 10.20.0 and later Android™ version 10.21.3 and later
Additional information
| Weight |
4.5 kg |
| Dimensions |
50 × 30 × 7 cm |
