Features:
- WiFi 7 with 6 GHz support
- 10 spatial streams
- Real-time spectral analysis for enhanced channel selection
- Dedicated spectral analyzer radio
- Long-range 6 GHz performance with AFC*
- 185 m² (2,000 ft²) coverage
- 1,000+ connected devices

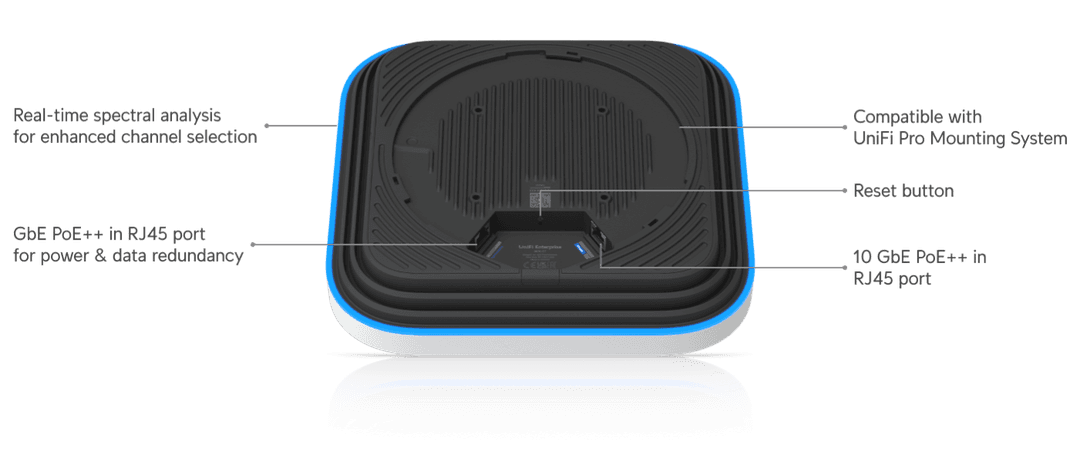

- (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
- Backwards compatible mounting system**
- Powered using PoE++
Overview
Dimensions
250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
10
Coverage Area
185 m² (2,000 ft²)
Max. Client Count
1000+
Uplink
10 GbE 1 GbE
Mounting
Ceiling, Wall, VESA (Pro Mount Included)
Power Method
PoE++
Performance
MIMO
6 GHz
4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
11.5 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
6 dBi
5 GHz
6 dBi
2.4 GHz
5 dBi
Max. TX Power
6 GHz
24 dBm / 30 dBm
5 GHz
30 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Real-Time Spectral Analysis
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
43W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port (1) 1 GbE RJ45 port
Weight
1.8 kg (4 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System
R/G/B
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
✓
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 8.6.9 and later
UniFi OS
iOS™ version 10.20.0 and later Android™ version 10.21.3 and later
Additional information
| Weight |
2.2 kg |
| Dimensions |
30 × 30 × 7 cm |
