Features:
- (8) 2.5 GbE PoE++ output ports
- (1) 10 GbE PoE+++ input port for power / SFP+ port combo
— 76W PoE availability with PoE+++ input*
— 46W PoE availability with PoE++ input*
— 16W PoE availability with PoE+ input*
- 196W PoE availability with optional AC power adapter**
*Actual PoE availability may vary based on input cable length and quality.
**AC power adapter sold separately.
Overview

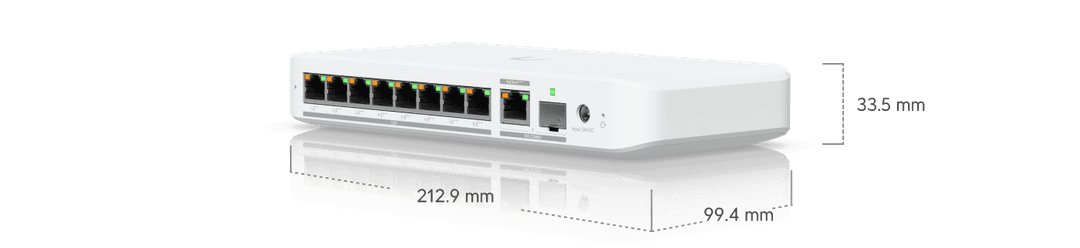

Dimensions
212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")
Port Layout
2.5 GbE RJ45
8 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45
1 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+
1
Max. PoE Output
Up to PoE++
Total PoE Availability
PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W
Form Factor
Compact Desktop, wall, DIN, magnetic
Performance
Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4,000
Layer 2 Features
STP & RSTP
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
Loop Protection
✓
Hardware
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
Power Method
(1) AC/DC adapter (Excluded) (1) PoE+++
Power Input Method
DC Input PoE
Supported Voltage Range
50—57V DC/PoE
Management
Ethernet
Weight
567 g (20 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
Additional information
| Weight |
0.700 kg |
| Dimensions |
25 × 10 × 5 cm |
