MikroTik LtAP LTE6 kit RBLtAP-2HnD&R11e-LTE6

Model: RBLTAP-2HNDR11E-LTE6

An upgrade of the heavy-duty LTE access point with GPS support.

  • Model
  • RBLTAP-2HNDR11E-LTE6
kr‎3,008.69
99999 in stock

Description:

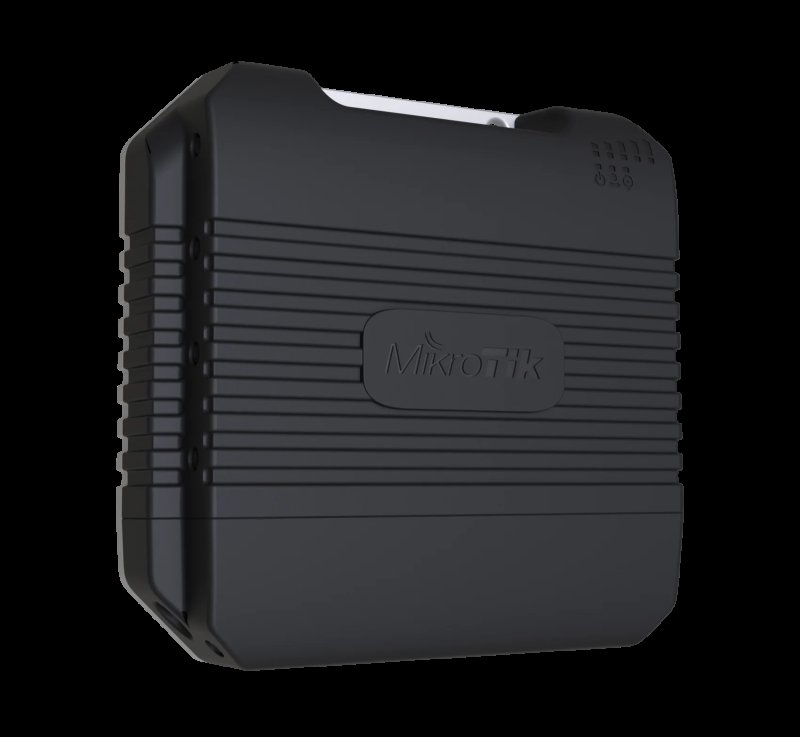

LtAP LTE6 kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in CAT6 cellular modem that supports 4G (LTE) connectivity out of the box – with up to 300 Mbps download speed!

• 2.4 GHz AP in a rugged case

• LTE installed in miniPCIe slot

• Second miniPCIe slot for expansions

• Three Mini SIM slots

• Gigabit Ethernet port

• Built-in GPS

• Many powering options (DC jack, POE-in, automotive)

• Serial port and full size USB for other devices

• Perfect for cars or outdoor mobile applications

CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.



Specifications

Details
Product code RBLtAP-2HnD&R11e-LTE6
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 70°C
IPsec hardware acceleration Yes
Suggested price $269.00







Powering

Details
Number of DC inputs 3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-30 V







Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC 35666210







Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9382
Wireless 2.4 GHz generation Wi-Fi 4







Ethernet

Details
10/100/1000 Ethernet ports 1







Peripherals

Details
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1







Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
GNSS standards GPS







Certification & Approvals

Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP54







Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73





Additional information

Weight 1.3 kg
Dimensions 20 × 20 × 6 cm
Enclosure

Industrial

Ethernet ports

2
