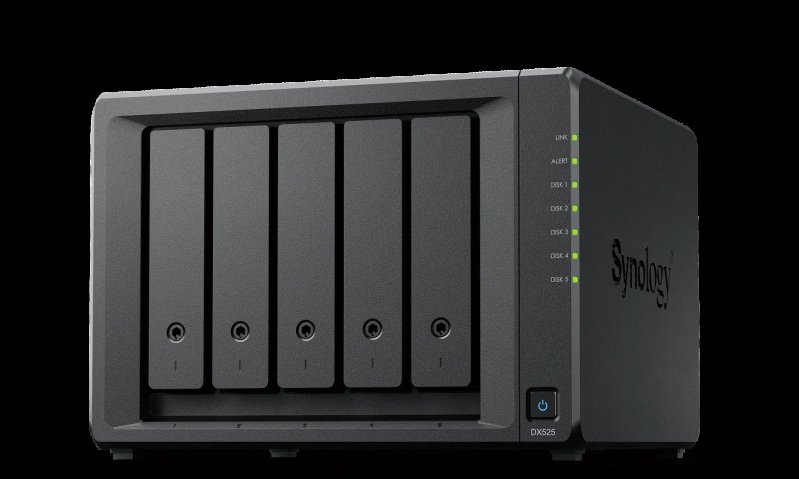

Synology DX525

Model: DX525
Seamless capacity expansion for Synology DiskStation.
  • Model
  • DX525
kr‎6,175.24
Notify me when in stock
Product Overview
Delivery and returns

Description:





Hardware Specifications

Applied Models

 Supports creating volumes across different units DS925+
  Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

 Drive Bays 5
  Drive Type (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive*
  RAID Management through Synology DSM
  Notes Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.

External Ports

 Expansion Port 1

Appearance

 Size (Height x Width x Depth) 166 mm x 230 mm x 223 mm
  Weight 2.46 kg

Power

 Power Recovery Synchronized with the Synology DiskStation
  Power Supply Unit / Adapter 90 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 35.37 W (Access)
7.0 W (HDD Hibernation)
  British Thermal Unit 120.69 BTU/hr (Access)
24.02 BTU/hr (HDD Hibernation)
  Notes For more information on how power consumption is measured, refer to this article.

Temperature

 Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Others

 System Fan 92 mm x 92 mm x 2 pcs
  Noise Level* 20.4 dB(A)
  Notes Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Certification
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • VCCI
  • RCM
  • KC
  • BIS

Warranty

 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
  Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment & Packaging

Environment

 RoHS Compliant

Packaging Content
  • Main Unit X 1
  • Expansion Cable: USB Type-C X1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1

Optional Accessories

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.





Additional information

Weight 5.65 kg
Dimensions 37 × 34.5 × 33 cm
Disk bays

5
