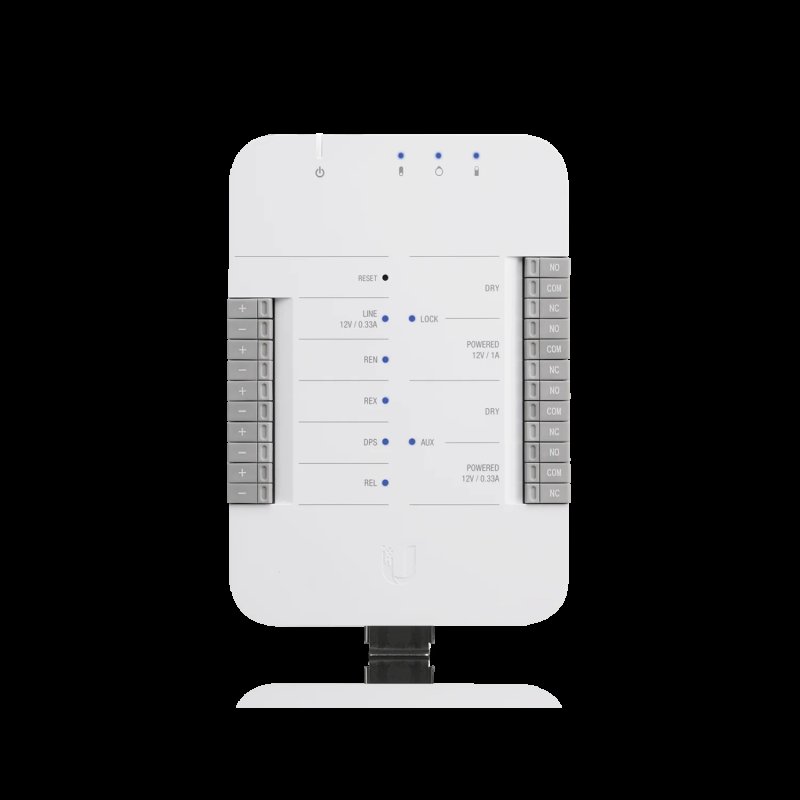

Ubiquiti Access Door Hub

Model: UA-HUB-DOOR
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
  • Model
  • UA-HUB-DOOR
kr‎2,369.46
99999 in stock
Product Overview
Delivery and returns

Description:

In the box:

  • (2) Lock terminals (12V and Dry)
  • (2) AUX terminals for an external siren and automatic door opener
  • (4) Additional inputs (sensors and buttons)
  • Connect and power using PoE++

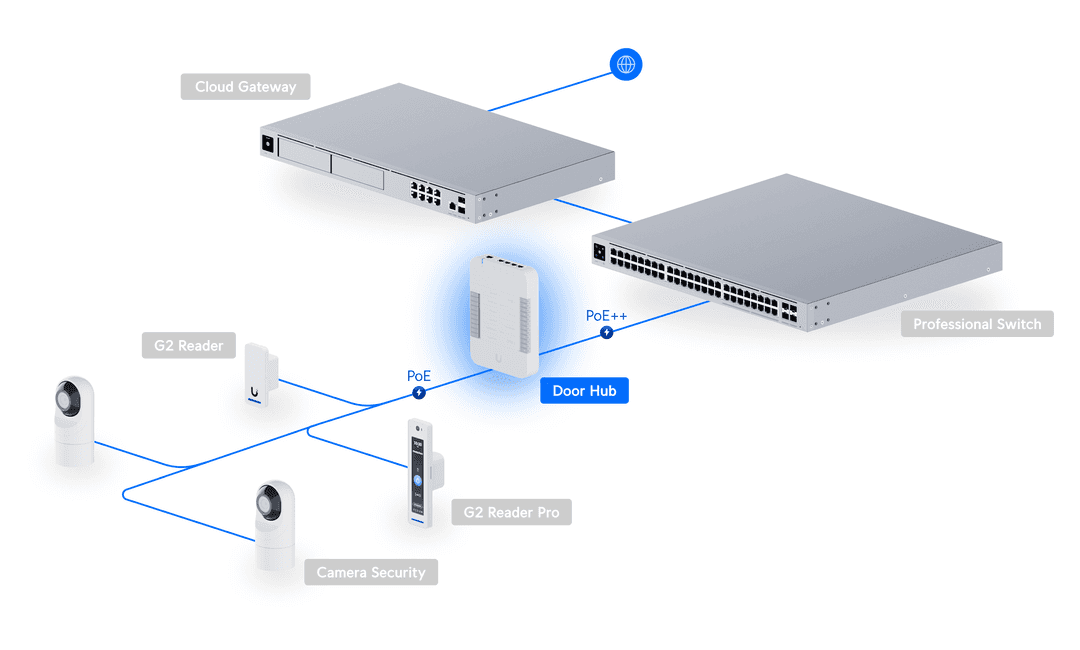

  • Connect to two UniFi Access readers and one UniFi Protect camera



Door Hub

Door Hub

Overview

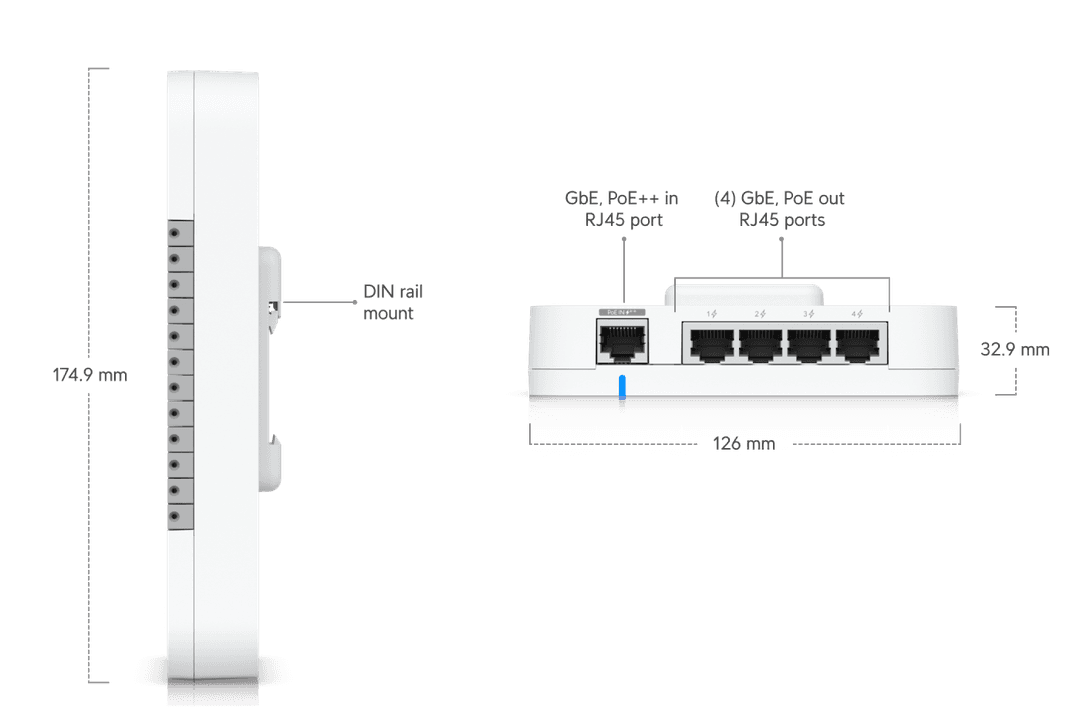

Dimensions

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")

Supported Doors

1

Input Terminals

(2) Door exit request (1) Door position (1) Emergency

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

NDAA Compliant

✓

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Mechanical

Weight

363 g (12.8 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

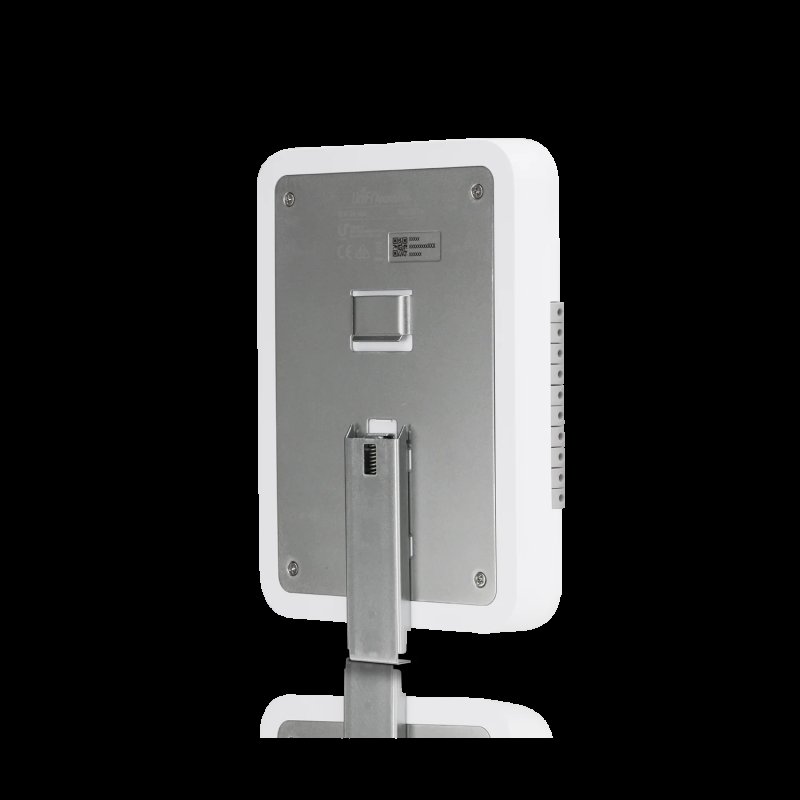

Mounting

DIN-rail (Included)

Hardware

Digital Input

Request to exit, request to enter, remote release, door position sensor

Dry Output Relay

Lock: 30V DC, 1A Aux: 30V DC, 1A

Powered Output Relay

Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A

Indoor and Outdoor Use

Indoor only

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Networking Interface

(5) 10/100/1000 Base-T

PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)

Max. Power Consumption

30W (Without PoE output) 50W (With PoE output)

LEDs

W/B Learn More

Buttons

(1) Factory-reset

Recommend Max. Cable Length

UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Door002, V01



Software

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com
