Features:
- 2K (4MP) video resolution
- Ultra-wide viewing angle (102.4°)
- 20 m (65 ft) IR night vision
- AI event detections
- Connect and power using PoE
- Optional Flush Mount for in-ceiling installation
Overview
Dimensions
Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
IR Night Vision
20 m (65 ft)
Smart Detections (People, Vehicles, Animals)
✓
Resolution
2K
Field of View
H: 102.4°, V: 54.9°, D: 120.6°
Tamper Resistance
IK06
Mounting
Surface mount (Included) Junction box, Ultra Flush mount (Optional)
Performance
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
30 FPS
Resolution
4MP 2688 x 1512 (16:9)
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
4.2W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Dual-core Arm® Cortex®-A7 based chip
Weight
175 g (6.2 oz)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Stainless steel

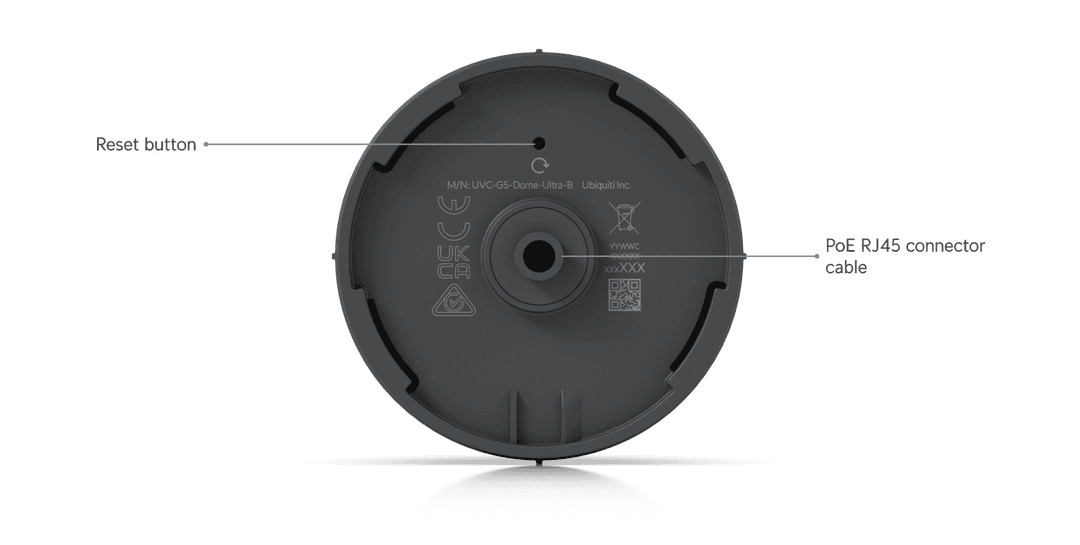

Button
(1) Factory-reset
Ambient Operating Temperature
-20 to 40° C (-4 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
