Features:
- Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
- Directory and doorbell to request entry

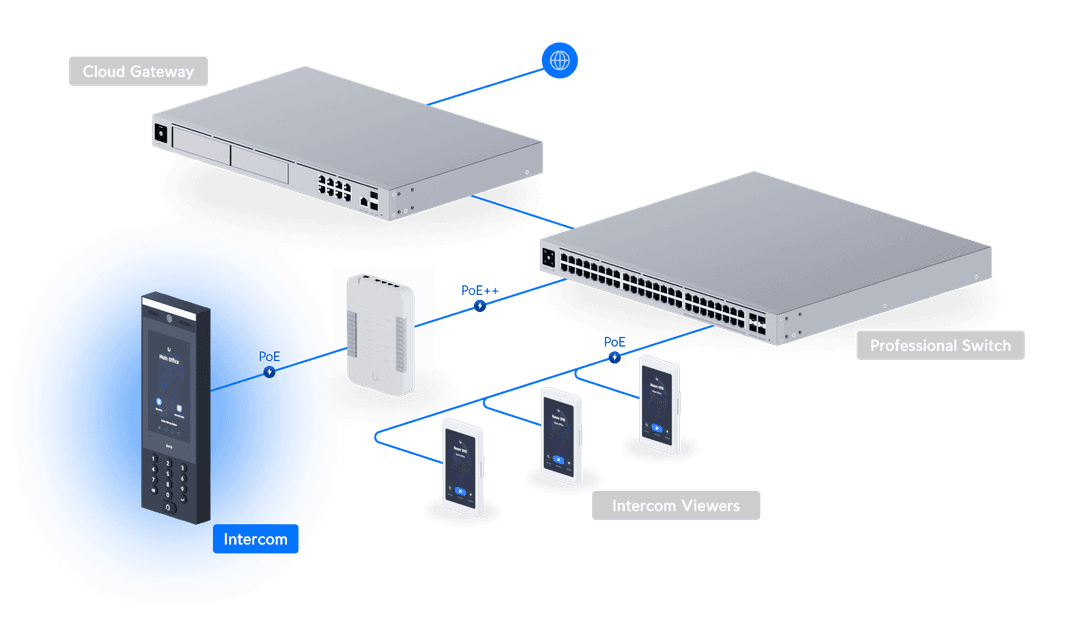

- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)

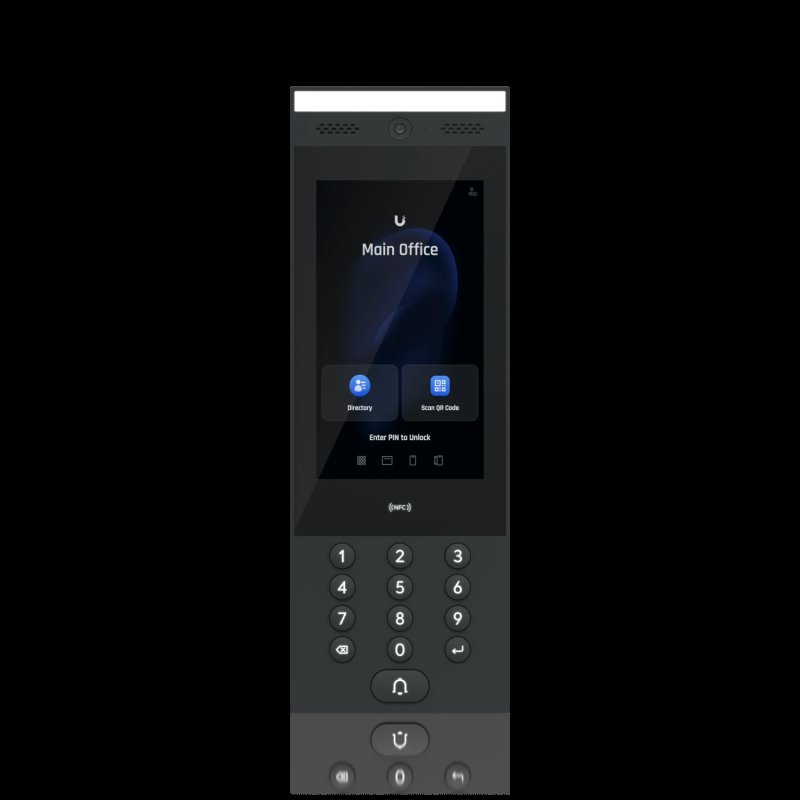

Overview

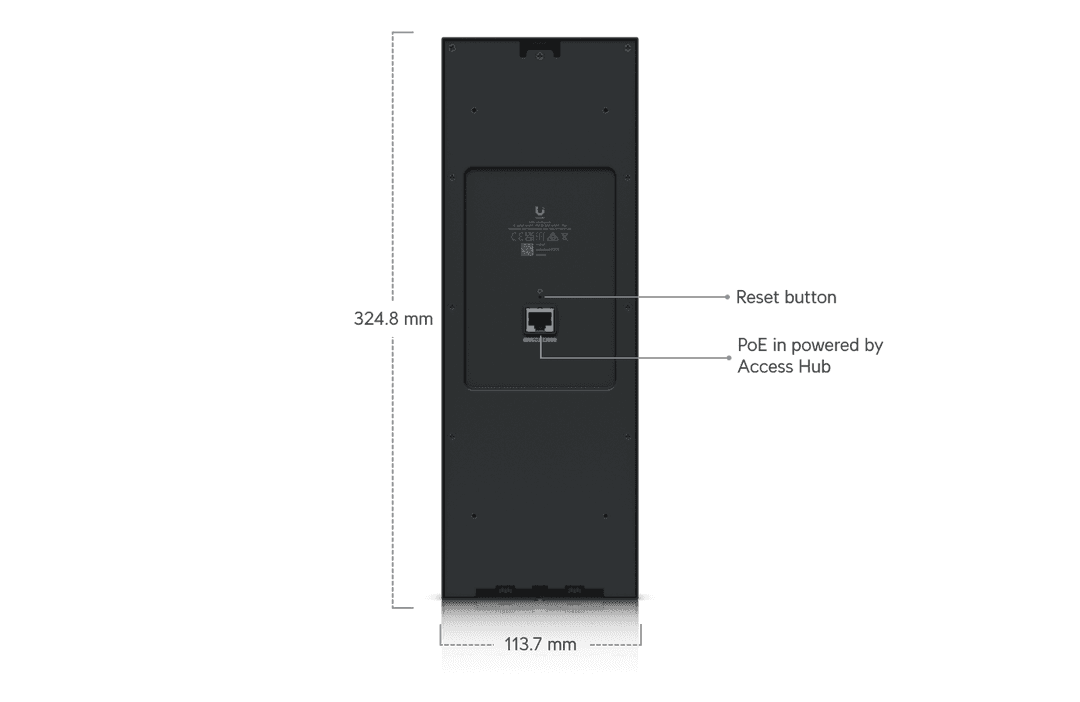

Dimensions
324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated Camera
✓
NFC Card & Keyfob Access
✓
PIN Access
✓
Mobile Unlock
✓
Two-Way Intercom & Doorbell Access
✓
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weatherproofing
IP65
Mechanical
Weight
Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material
Powder-coated stainless steel
Mounting
Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)
Hardware
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2 NFC
Power Method
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
13W
Supported Voltage Range
48V DC
Sensors
Proximity sensor ALS sensor
Display
177 mm (7") diagonal
Touch Screen Technology
Capacitive multi-touch
Display Luminance
Max. 1000 nits (Typical)
Screen Orientation
Portrait
Resolution
1024 x 600 px
Microphone
✓
Speaker
✓
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
LEDs
Amber Learn More
Buttons
(1) Factory-reset
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Intercom, V01
Software
Management Application
Access
Software Information
The software version can be checked at https://unifi.ui.com
