Features:
- WiFi 5
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 200+ connected devices
- Powered using PoE
- GbE uplink

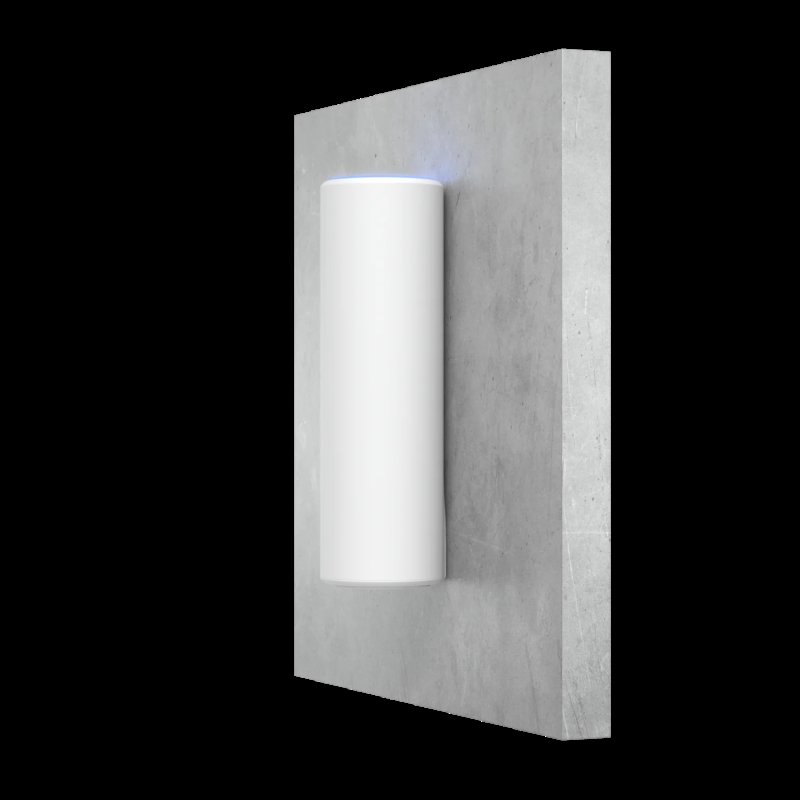

- Versatile tabletop, wall, and pole mounting
- Weatherproof (outdoor exposed)*
*Weatherproof when installed LED side up with the included pole/wall mount accessory.
Overview
Dimensions
Ø48.5 x 159.5 mm (Ø1.9 x 6.3")
WiFi Standard
WiFi 5
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
200+
Uplink
GbE
Mounting
Wall, Pole, Table (Mounts Included)
Power Method
PoE
Performance
MIMO
5 GHz
4 x 4 (DL MU-MIMO)
2.4 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate
5 GHz
1.7 Gbps (BW80)
2.4 GHz
300 Mbps (BW40)
Antenna Gain
5 GHz
4 dBi
2.4 GHz
1.6 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
Features

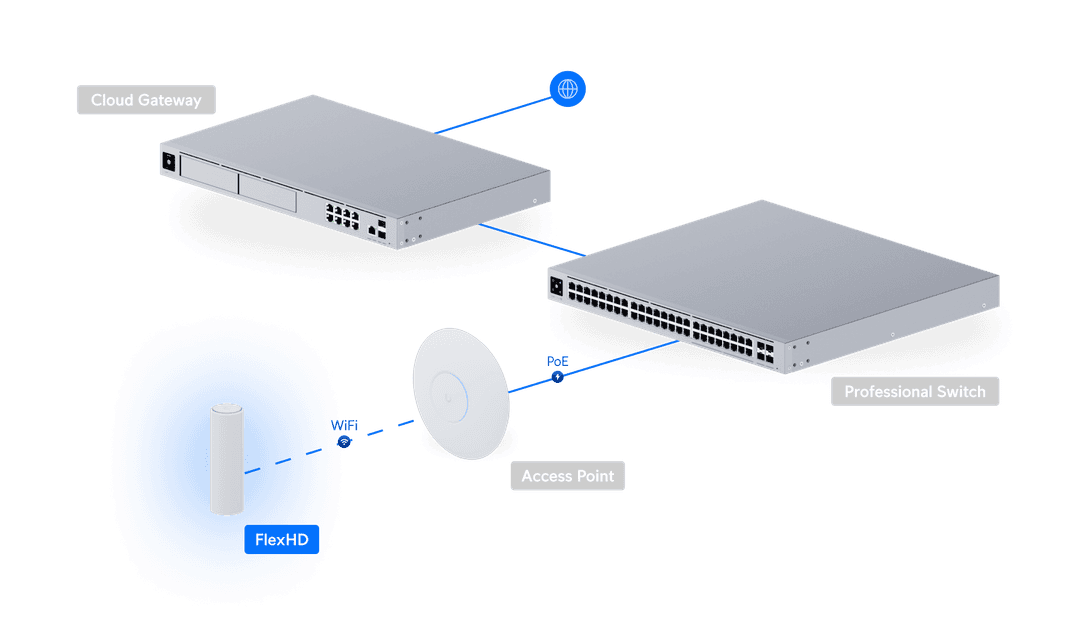

Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
10.5W
Includes PoE Adapter
✓
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port
Weight
315 g (11.1 oz)
Management
Ethernet
LEDs
System
Status
Channel Bandwidth
HT 20/40, VHT 20/40/80/160 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
✓
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz
Ambient Operating Temperature
-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 6.0.45 and later
Additional information
| Weight |
0.3 kg |
| Dimensions |
12 × 19 × 10 cm |
