Features:
- Improved HDR and low-light performance
- Programmable welcome display and secondary package-detection camera
- 6 m (20 ft) IR night vision
- AI event detections

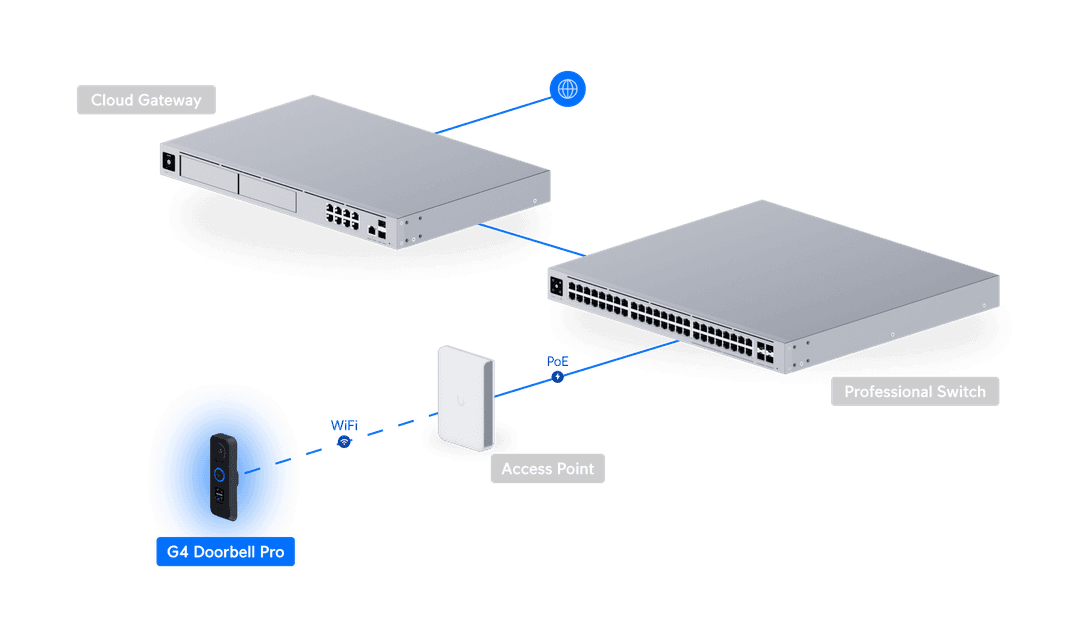

- Wirelessly connected with UniFi WiFi Auto-Link*
- Integrated 2-way audio
- Weather-resistant (outdoor covered)
Overview
Dimensions
160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
IR Night Vision
6 m (20 ft)
Smart Detections (People, Vehicles, Animals)
✓
Resolution
FHD
Field of View
Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Audio
Two-way audio
Weatherproofing
IPX4
Mounting
Flat wall, 20° wedge (Included)
Performance
Networking Interface
802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (With UACC-Adapter-DBPOE)
Video
Max. Frame Rate
30 FPS
Resolution
Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3)
Optics
Sensor
Main camera: 5MP CMOS Package camera: 8MP CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
10W
Supported Voltage Range
37—57V DC
Power Method
16—24V AC, 1.25A Max., 50/60 Hz USB-C power cable, 5V DC, 2A
Processor
Quad-core Arm® Cortex®-A53 based chip
Weight
Device: 253 g (8.9 oz) With flat wall mount: 286 g (10.1 oz) With 20° wedge mount: 325 g (11.5 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate
Button
(1) Ring button (1) Factory-reset
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
Compatible Chimes
Mechanical Broan-NuTone: LA126WH, LA11WH, LA39WH Heath Zenith: SL-2735 Craftmade: CTPW-RG Newhouse Hardware: CHM3D Digital Broan-NuTone: LA600WH IQ AMERICA: DW-2850, DW-2840
