Features:
- Improved HDR and low-light performance
- Programmable welcome display and secondary package-detection camera
- AI event detections

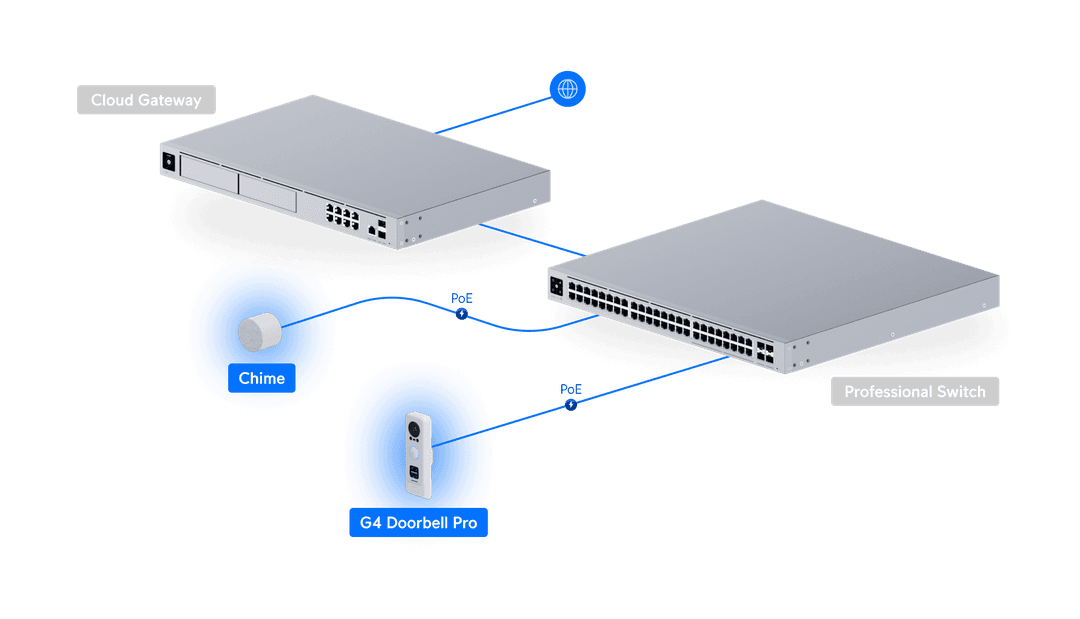

- Connect and power using PoE
- Integrated 2-way audio
- Includes PoE Chime
- Weather-resistant (outdoor covered)
Overview
Dimensions

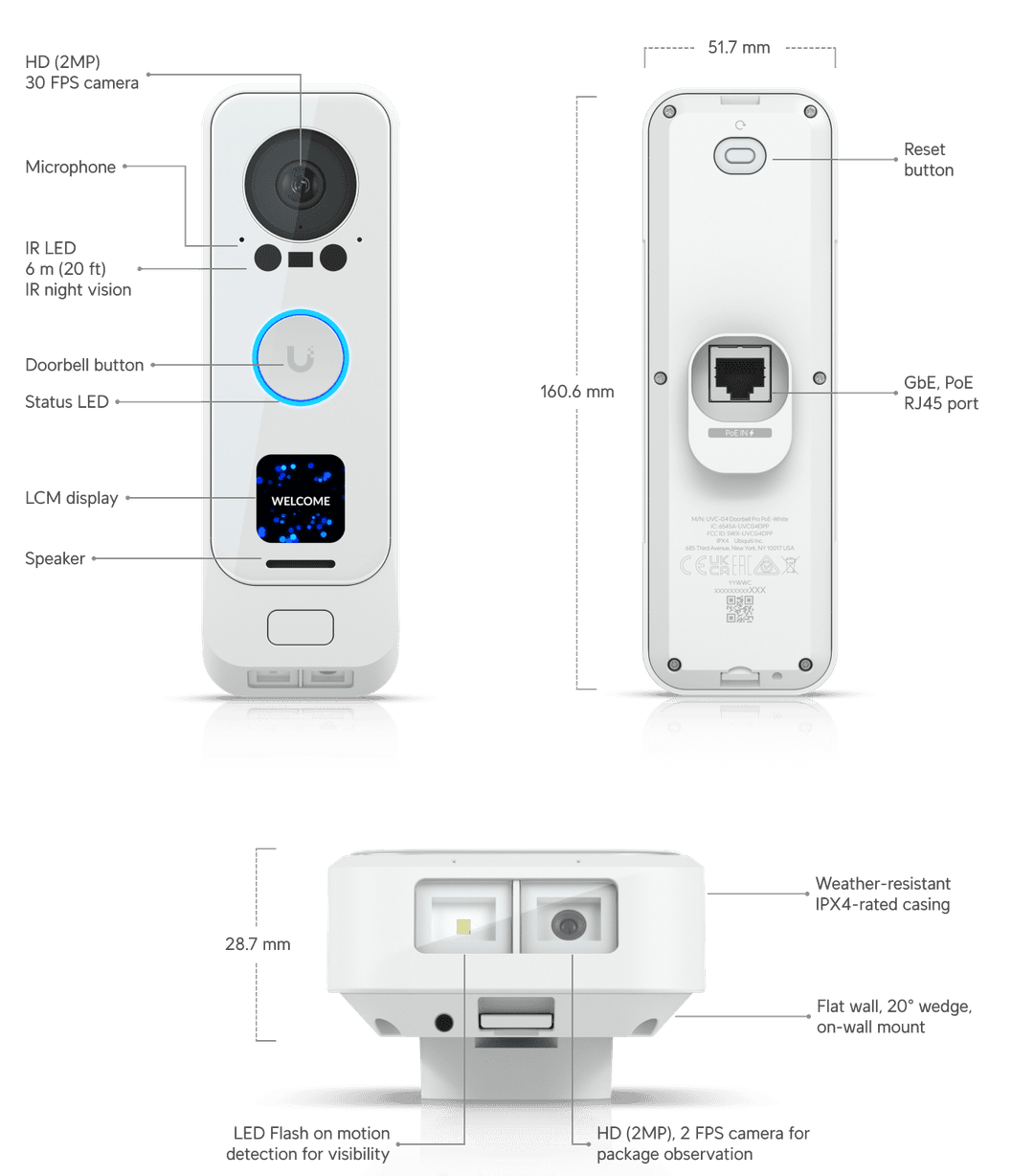

Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")
IR Night Vision
6 m (20 ft)
Smart Detections (People, Vehicles, Animals)
✓
Resolution
FHD
Field of View
Main camera: H: 138°, V: 114°, D: 155° (LDC On) Main camera: H: 160°, V: 117°, D: 160° (LDC Off) Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Audio
Two-way audio
Weatherproofing
IPX4
Mounting
Wall, wedge (Included) Gang box, junction box (Optional)
Performance
Networking Interface
GbE RJ45 port
Video
Max. Frame Rate
30 FPS
Resolution
Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3)
Optics
Sensor
Main camera: 5MP CMOS Package camera: 8MP CMOS
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter
Hardware
Max. Power Consumption
7W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Quad-core Arm® Cortex®-A53 based chip
Weight
Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate
Button
(1) Ring button (1) Factory-reset
Ambient Operating Temperature
-30 to 40º C (-22 to 104º F)
Ambient Operating Humidity
0 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
Software
Mobile app
UniFi Protect iOS™ and Android™

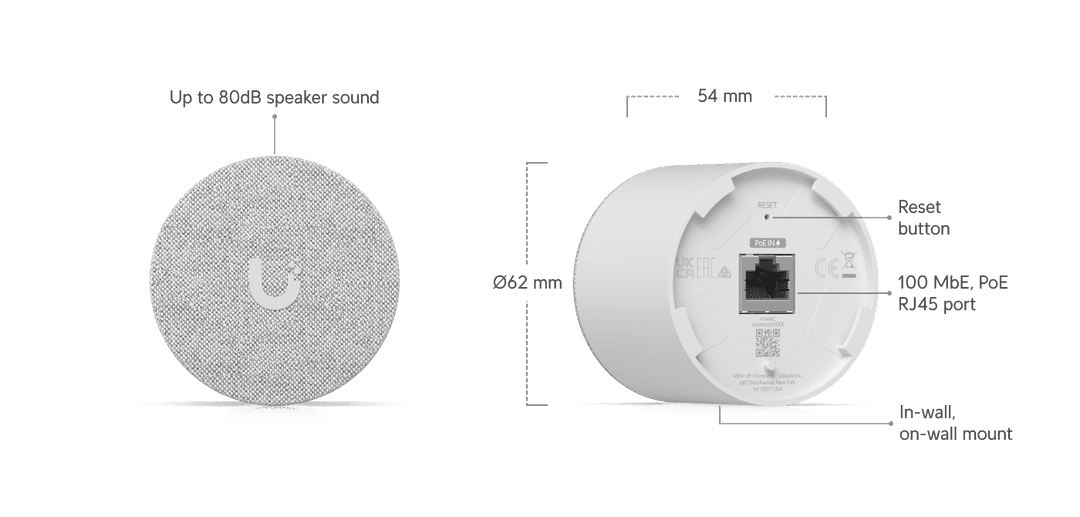

Chime
Dimensions
Device: Ø62 x 54 mm (Ø2.5 x 2.1") In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5") On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight
Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, zinc alloy
Networking Interface
10/100 MbE port
Power Method
PoE
Supported Voltage Range
44—57V DC
Max. Power Consumption
3W
LED
R/G/B/W
Buttons
(1) Factory-reset
Speaker
Yes
Buzzer
Yes
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
NDAA Compliant
✓
Additional information
| Weight |
1 kg |
| Dimensions |
20 × 15 × 10 cm |
