- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Overview
Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

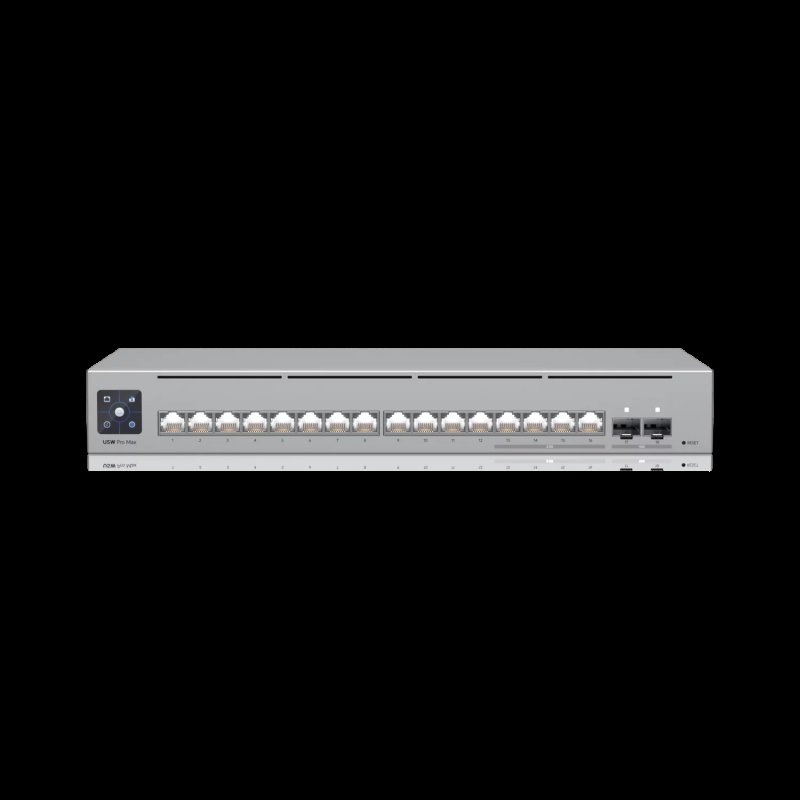

Port Layout
1 GbE RJ45
12 (1G/100M/10M)
2.5 GbE RJ45
4 (2.5G/1G/100M/10M)
10G SFP+
2
Layer 3
✓
Form Factor
Rack mount (1U), desktop, wall
Etherlighting™
✓
Performance
Switching Capacity
84 Gbps
Total Non-Blocking Throughput
42 Gbps
Forwarding Rate
62 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Routes
512
Packet Buffer Size
1.5 MB
Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Hardware
Max. Power Consumption
25W
Power Method
AC/DC Adapter (included)
Power Input Method
USB Type-C, 5V DC, 5A
Power Supply
AC/DC, external, 25W
Supported Voltage Range
4.8—5.2V DC/USB
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
85.3 BTU/hr
Weight
1.95 kg (4.3 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
✓
SFP+
✓
Certifications
CE, FCC, IC
NDAA Compliant
✓
Additional information
| Weight |
2.5 kg |
| Dimensions |
35 × 20 × 8 cm |
